Image Systems Gemini 6MP Large Format Display


Back To Categories > ,

Double Black Imaging’s Gemini series 6MP color LED backlit LCD monitor doubles the resolution and eliminates the gap between screens in multi-head diagnostic display configurations; this allows the eye to seamlessly glide between images uninterrupted while increasing productivity and user efficiency. Complete with auto-calibration technology, these wide-screen models enable multi-modality imaging from a single 6MP Color LED display.

DBI’s Gemini 6MP Color LED features exceptionally high brightness and high contrast ratios, and its auto-calibration capability ensures consistent diagnostic quality images over years of use. Confidence is high and workflow is enhanced with our productivity tools and wide viewing angle.

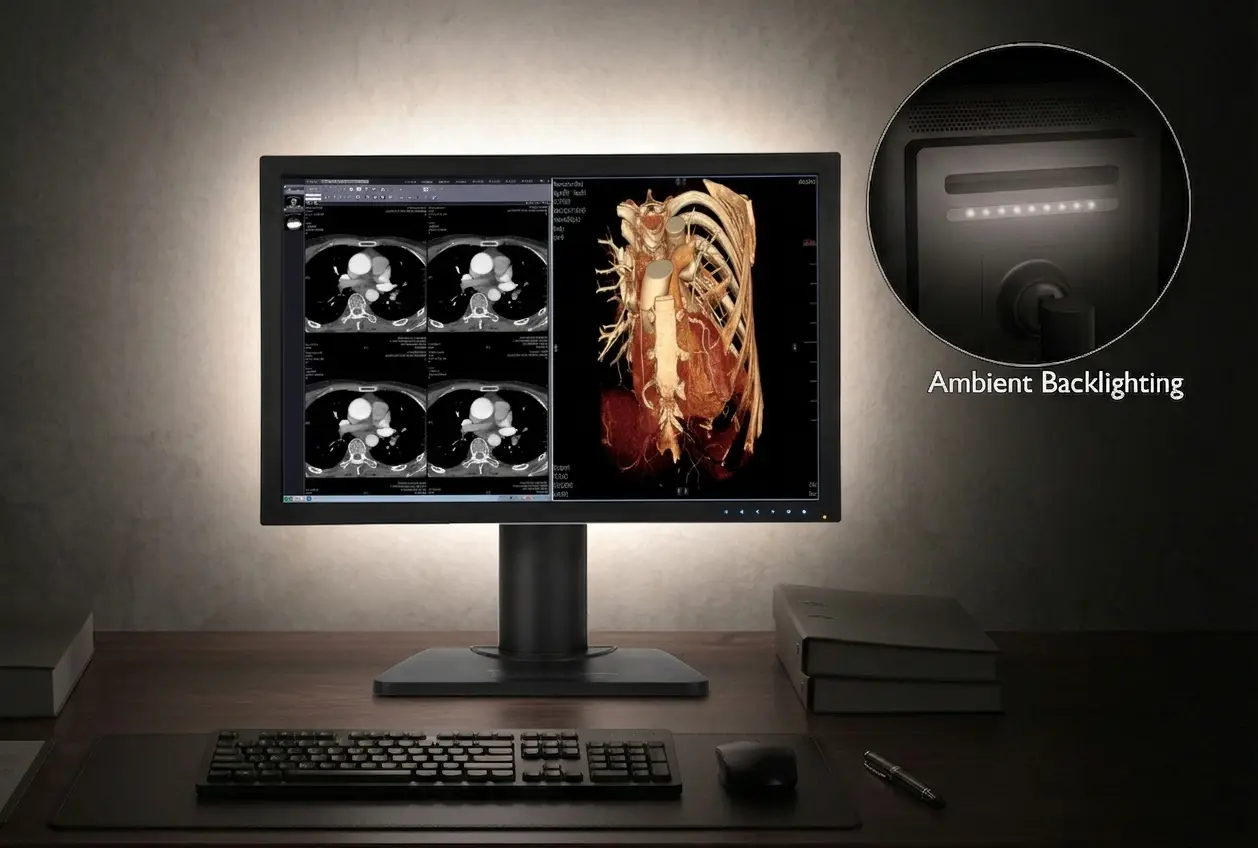

The C6MPG, 6 Megapixel Color LED Backlit LCD medical monitor is equipped with built in front sensors for hands-free automatic DICOM 3.14 calibration, as well as backlight sensors and ambient light sensors to maintain stability and accuracy over time.

SKU: GEMINI-6MP

Description

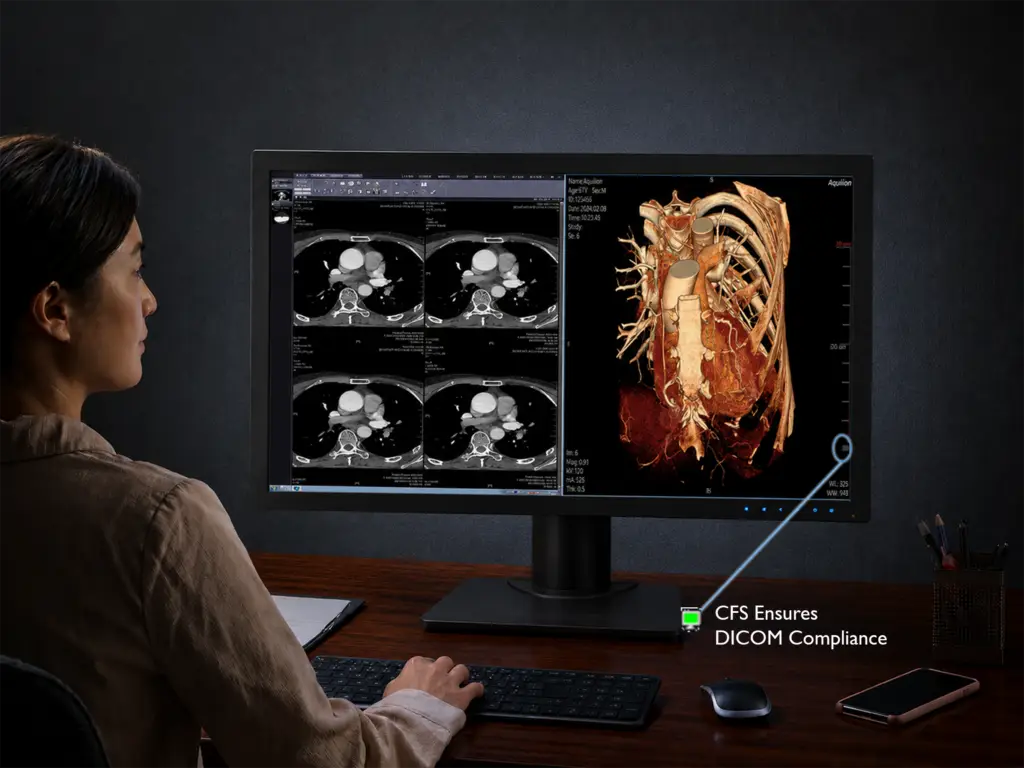

Each C6MPG, 6MP Color LED medical monitor includes CFS Calibration software from Double Black Imaging:

• DICOM 3.14 Automatic calibration with local and Web-based remote administration
• Email alerting for proactive workstation maintenance
• Total control of display settings, including remote adjustment and calibration testing
• Built in Visual tests for DICOM and MQSA Compliance
• Comprehensive reporting for Joint Commission, MQSA, Fleet tracking, asset management, and DICOM compliance
• DBI’s exclusive Radiologist Productivity toolkit

This 6MP Color LED monitor can be used for viewing of grayscale or color images – including multi-modality exams involving X-Ray, DR, CR, MRI, US, PET, 3D, Cardiology, NucMed, and Digital Pathology.

Double Black Imaging backs each diagnostic display with our signature 5-year warranty. Our team has a renowned history of providing the industry’s finest customer service; we are continually acknowledged by thousands of Radiologists and IT Professionals who put their trust in us every day.

G-Series Technical Specifications

6G

Description 6 Mega-Pixel LED Backlit LCD with Embedded Front Sensor for Auto-Calibration and backlight sensors
Screen Type LED Backlit LCD
Size  30″
Resolution 3280 x 2048 (6MP)
Brightness 720 cd/m2 Typical; 350-400 cd/m2 Recommended Calibrated
Contrast Ratio (typical) 1000:1
Response Time 18 ms Typ.
Viewing Angle 178° horizontal & vertical
Pixel Pitch  0.1995 x 0.1995 mm
Look Up Table 14 Bit

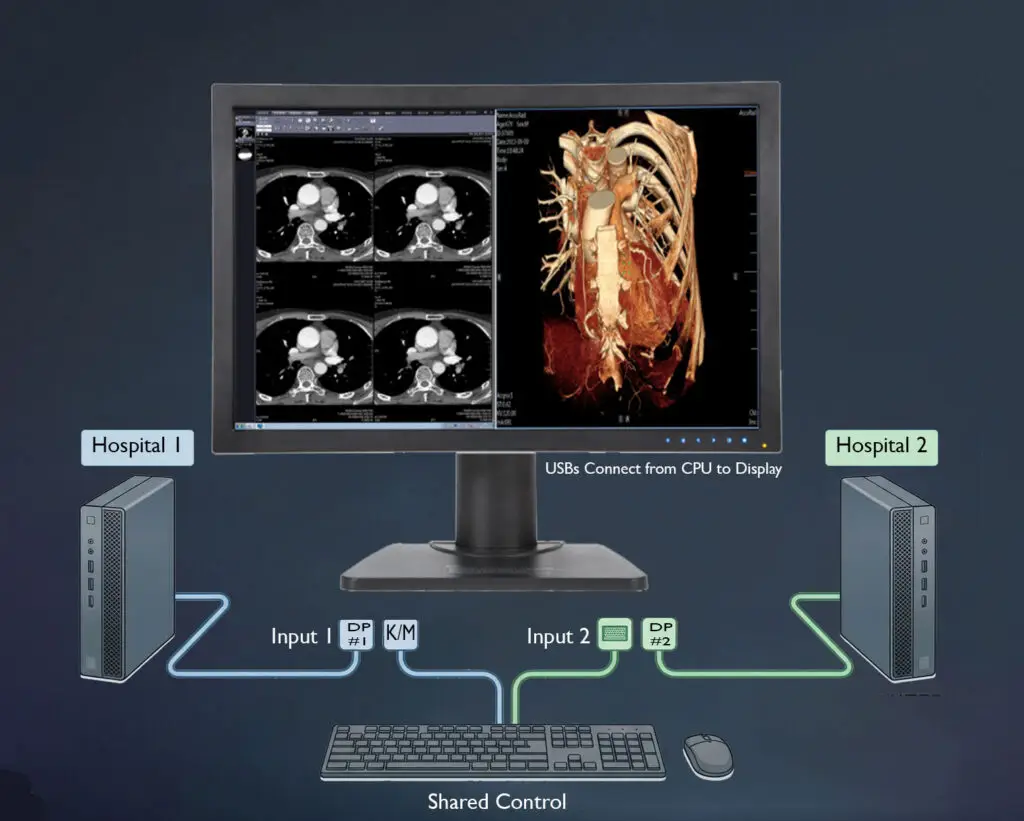

Video Input/USB DVI (2), Display Port (2), USB
Dimensions H x W x D (inches) 24.7 x 28.3 x 9.8″
Weight with stand/base (lbs.) 38 Lbs
Power Supply External
Power Consumption (on/savings) 160W/ Less than 5W during Power Save
Compliance/Safety Standards EN60601-1, IEC60601-1, GB4943.1, ANSI/AAMI, ES60601-1:2005 + A2(R2012) +, Al, CAN/CSA-C22.2 No.
60601-1:14, CE ace to MDD, 93/42/EEC (Class I), IP20
Other Features Embedded Front Sensor for True Auto-Calibration, Client/Remote Administration Calibration Software included, Rear Sensor for Back light brightness control, Digital Ambient Light Compensation, Complete Screen Luminance Uniformity Control, 14 Bit Processing for Precise Image Rendering, VESA Standard Mounting configuration, Other Mounting options available



Product Downloads

Gemini 6MP
