Description

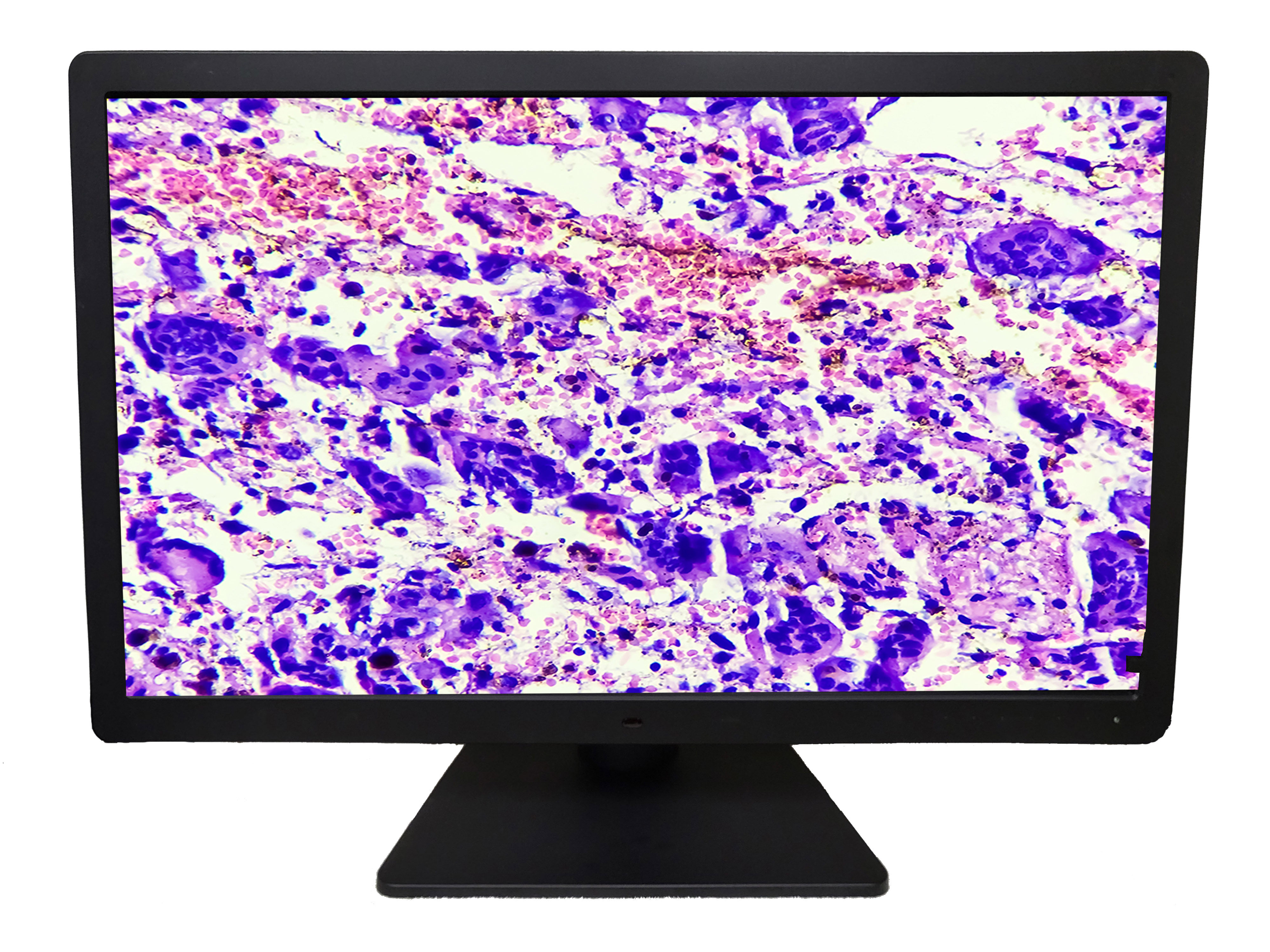

Experience precision and performance with the DBI PA27T, an 8MP Color LED Touch Screen Display engineered specifically for Digital Pathology. This advanced medical-grade system includes CFS calibration software from Double Black Imaging, ensuring consistent color accuracy and reliable image integrity across your workflow.
Key Advantages:
-

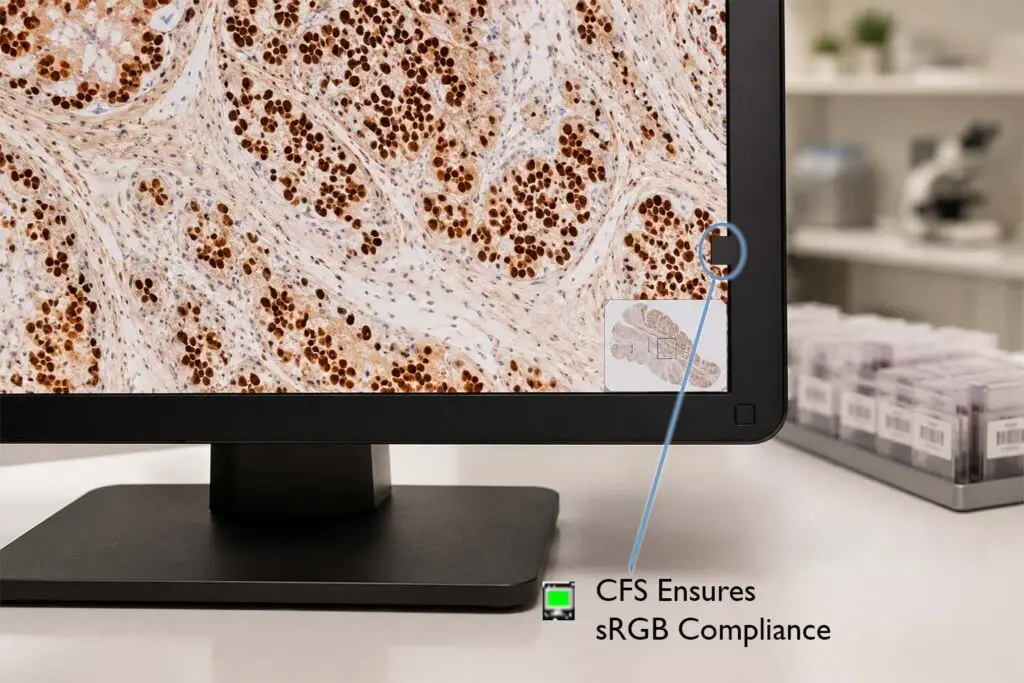

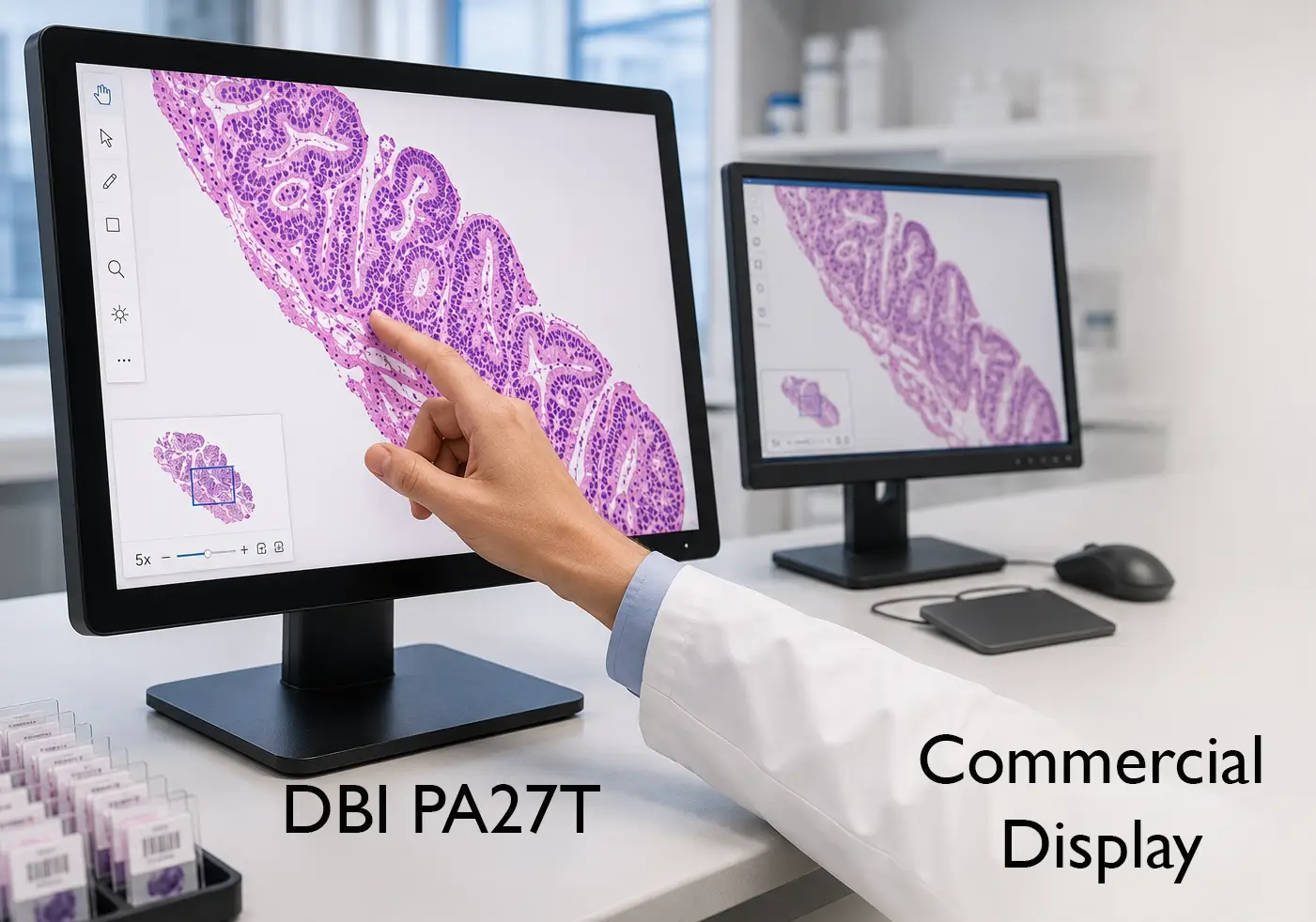

Professionally calibrated to the sRGB standard with local and web-based remote management
-
Automated email alerts enable proactive workstation maintenance
-
Comprehensive reporting tools support fleet tracking, asset management, and ongoing sRGB compliance
-
Built-in productivity toolkit for enhanced daily efficiency
Each PA27T display is supported by Double Black Imaging’s industry-leading 5-year warranty and backed by a service team known for delivering the best customer support in the Medical Imaging field.
Call now to request a quote on the DBI PA27T Digital Pathology Display!
DBI PA27T Technical Specifications
| Model | PA27T | |
| Size | 27″ TFT Color; 16:9 Aspect Ratio | |
| Resolution/ Active Area | 3840 x 2160 (8MP); Active area: 596.26 x 335.34 mm; 23.47” x 13.20 | |
| Brightness | 500 cd/m2 Calibrated Brightness | |
| Contrast Ratio | 1000:1 Typ. | |
| Color Support/Color Mode | 1.07B Colors (8Bit + Hi FRC) / sRGB, Gamma 2.2 | |
| Response Time | TR+TF 16ms | |
| Pixel Pitch | 0.15525mm x 0.15525mm | |

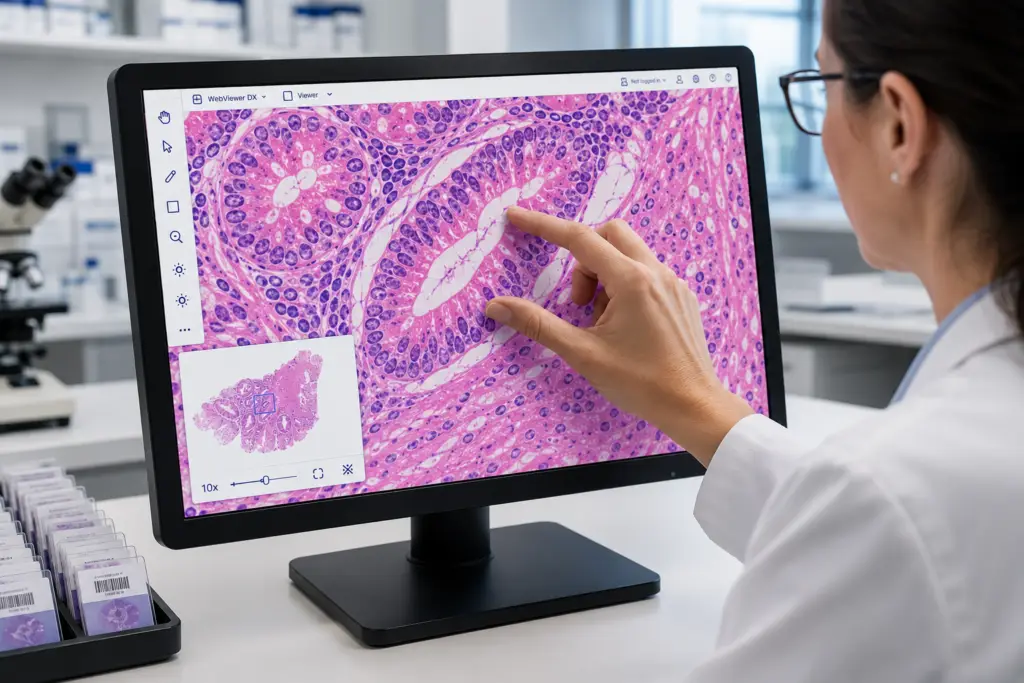

| Touch Panel – DBI PA27T Only | P-CAP Touch Panel, Max. 10 Point | |
| Built In Sensors | Front Sensor, Backlight Sensor | |
| Tilt/Swivel/Height Adjustment | -5 to + 20⁰ Tilt | +/- 90⁰ Pivot | 110mm Height Adjustment | |
| Viewing Angle | 178° Typ. | |
| Video Input / USB (1up 1down) | Display Port (1), HDMI (1), DVI-D (1), USB (1 Up, 2 Down) | |
| Power Supply | External for Added Reliability. AC Input to power brick: 100-240V | |
| Power Consumption | 120w max./Power save mode < 1w | |
| Weight | 31.1 lbs DBI PA27T w/stand | |
| Dimensions ( W x H x D ) w/stand |
25.4” x 18.6” x 8.86” | |
| Mounting Options | 100 x 100 mm VESA | |
| Safety & Emissions | 1:2005+A1:2012, EN60601-1:2006+A1:2013+A12:2014, ANSI/AAMIES60601-1:2005+R1:2012, CAN/CSAC22.2 No.60601-1:14, IEC60601-1-2: 2014(ed.4) EN60601-1-2:2015(ed.4), FCC part 15 Class B, ICES-003Level B, VCCI(Japan), 3C, China Energy Label EU RoHS, China RoHS, REACH, WEEE, Packaging Directive ISTA 1E, CE EMC+LVD, Canada Health, FDA 510(k) Clearance with Leica Aperio GT 450 DX with Aperio WebViewer DX, cleared under K232202 |
|
| Warranty | 5-Year standard warranty with Hot Swap | |
| Application | Digital Pathology | |
| Calibration Software | CFS Calibration Suite Included with Productivity Toolkit | |
