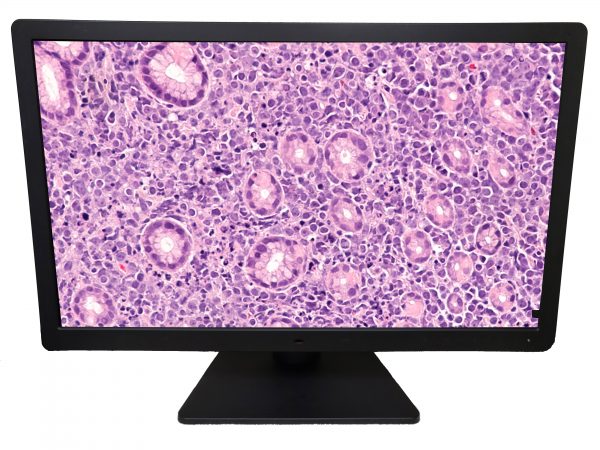

27″ Digital Pathology Display — DBI PA27
The DBI PA27 is an 8MP, 27-inch color medical display engineered for digital pathology and whole slide imaging (WSI).
The PA27 delivers precise sRGB color rendering for confident primary diagnosis and tissue review. A built-in front sensor and real-time luminance stabilization hold color, gamma, and brightness steady across the display’s lifecycle. Bundled CFS Calibration Suite adds automated calibration and centralized, web-based fleet management.
• 8MP UHD Color, sRGB Calibrated
• Built-In Front Sensor for Auto-Calibration
• CFS Remote Fleet Management Included
8MP UHD Resolution
|
sRGB Calibrated
|
FDA 510(k) for Pathology
|
5-Year Warranty
Engineered for Pathology-Grade Color
and Consistency
The PA27 pairs a high-resolution color panel with automated calibration and USA-based support.
Every unit is calibrated for the color fidelity that whole slide imaging demands.
Automated sRGB Calibration with CFS Calibration Suite
Color Accuracy, Compliance & Enterprise Management
The PA27 is calibrated to the sRGB standard and kept consistent by CFS Calibration Suite. The software monitors luminance and color so manual checks are not required. CFS compensates for panel drift and preserves color integrity over the display’s life. Administrators manage calibration, compliance, and reporting from one web-based console.
- Calibrated to the sRGB Standard, Gamma 2.2
- Includes Local Agent and CFS WebManager
- Email Alerting for Proactive Maintenance
- Reporting Tools for Fleet and Asset Tracking
- Centralized, Web-Based Remote Management
- Included With Every PA27 — No Separate Subscription
Stable, Lifelike Color Built for Whole Slide Imaging
Calibrated Brightness, Wide Color, Broad Compatibility

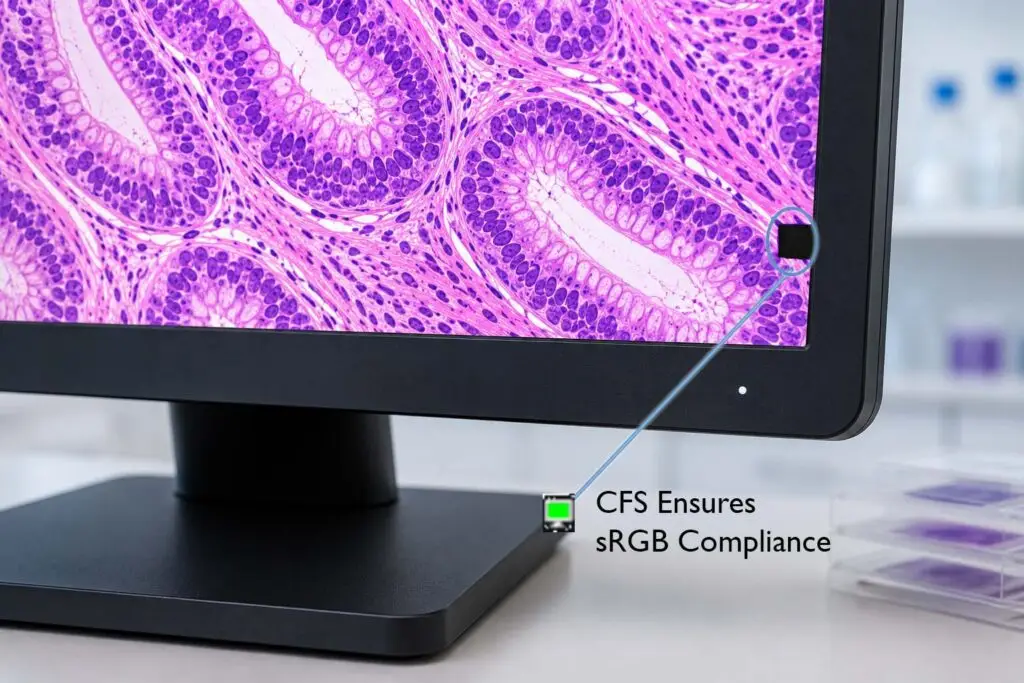

An integrated front sensor enables true auto-calibration through CFS, while a backlight sensor holds a calibrated 500 cd/m² as the panel ages. The display renders 1.07 billion colors at 3840 × 2160 (8MP) across a 178° viewing angle. Standard DisplayPort, HDMI, and DVI-D inputs connect to existing workstations, with no proprietary controller card required.
- Front Sensor for True Auto-Calibration
- Backlight Sensor for Luminance Stability
- 500 cd/m² Calibrated Brightness
- 8MP (3840 × 2160) UHD Resolution
- 1.07 Billion Colors and 178° Viewing Angle
- DisplayPort, HDMI and DVI-D Inputs
- No Proprietary Controller Card Needed
Why Choose a Purpose-Built Pathology Display
Engineered for Diagnosis, Not Repurposed Consumer Tech
A standard 4K monitor is not built for diagnostic color. Off-the-shelf displays ship with default color, drift untracked as the panel ages, and offer no way to prove compliance. The PA27 is sRGB calibrated, sensor-equipped, and medical-grade, so tissue color stays accurate and auditable across the display’s life. It is also FDA 510(k) cleared for use within a validated whole slide imaging system.
- sRGB Calibrated, Not Factory-Default Color
- Built-In Front Sensor for Ongoing Auto-Calibration
- Stable Color as the Panel Ages — No Untracked Drift
- Compliance Reporting Consumer Monitors Cannot Provide
- Consistent Color Across an Entire Display Fleet
- Medical-Grade Build With 5-Year Hot-Swap Warranty
5-Year Warranty with USA-Based Service and Support
Hot-Swap Coverage and Long-Term Confidence
The PA27 ships with a 5-year warranty and Hot-Swap coverage for minimal downtime. Units are tested, integrated, and serviced at DBI’s facility in Louisville, Colorado. Support comes from a USA-based team trusted across enterprise healthcare. That means faster answers and quicker resolution when it matters.
- 5-Year Standard Warranty
- Advance Hot-Swap Replacement Included
- Direct Access to USA-Based Support
- Tested, Integrated and Serviced in the USA
- Proven Across Enterprise Healthcare Environments
DBPA27 Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
3840 × 2160 (8MP)
Screen Size and Active Area
27″ TFT Color; 16:9 Aspect Ratio; 23.5 x 13.375″ Active Display Area
Screen Type
LED Backlit LCD
Brightness
500 cd/m² Calibrated
Contrast
1000:1
Viewing Angle
178 Degrees Typical
Pixel Pitch
0.15525mm × 0.15525mm
Response Time
16ms
Inputs
DisplayPort (1), HDMI (1), DVI-D (1); USB (1 Up, 2 Down)
Dimensions W x H x D (Inches)
22.63″ x 16.25 ~22.5″ x 9.25″ w/Stand;
Weight (lbs)
28.5 lbs w/Stand
Power Supply
External for added reliability. AC Input to power brick: 100-240V
Power Consumption (on/savings)
120W max.; < 1W in Power Save
Certifications

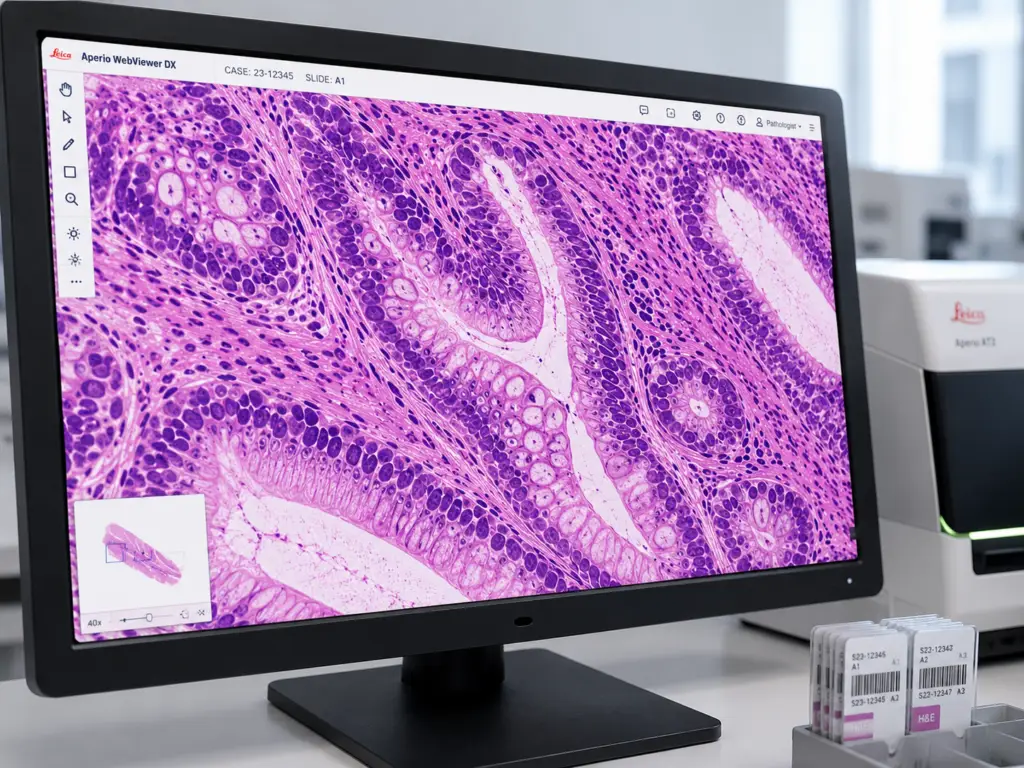

FDA 510(k) cleared with Leica Aperio GT 450 DX and Aperio WebViewer DX (K232202); CE EMC+LVD; EU/China RoHS; REACH; WEEE; FCC Part 15 Class B
Recommended Modalities
Digital Pathology
Other Features
Front Sensor for True Auto-Calibration, CFS Client/WebManager Calibration Software included, Rear Sensor for Back light brightness control, Digital Ambient Light Compensation, Complete Screen Luminance Uniformity Control, VESA Standard Mounting configuration, Other Mounting options available.
Digital Pathology Display FAQs
Is the DBI PA27 FDA cleared for digital pathology?
Yes. The PA27 is FDA 510(k) cleared for use with the Leica Aperio GT 450 DX scanner and Aperio WebViewer DX, cleared under K232202, for primary diagnosis within that validated whole slide imaging system.
What is sRGB calibration, and why does pathology need it?
sRGB is the color standard most whole slide imaging viewers target. Calibrating the PA27 to sRGB with a Gamma 2.2 curve keeps tissue color consistent from scanner to screen, so stains and structures look the same across every reading station..
Does the PA27 require a special graphics card?
No. It connects through standard DisplayPort, HDMI, or DVI-D and works with common workstations. No proprietary display controller card is needed.
How does the PA27 stay calibrated over time?
A built-in front sensor and CFS Calibration Suite® measure and correct color and luminance automatically, on schedule or in real time. CFS also compensates for panel drift as the display ages.
Why not use a standard 4K monitor for digital pathology?
Standard monitors are not calibrated to sRGB for diagnosis, their color drifts untracked over time, and they cannot document compliance. The PA27 is calibrated, sensor-equipped, and medical-grade, and it is FDA 510(k) cleared for use within a validated whole slide imaging system.
Is there a touchscreen version?
Yes. The DBI PA27T adds a 10-point projected-capacitive touchscreen for on-screen slide navigation. Click here for more information!
What warranty and support come with the PA27?
Every PA27 includes a 5-year warranty with Hot-Swap coverage and USA-based service from DBI's Colorado facility.
DBI is trusted by thousands of healthcare
organizations nationwide.
The PA27 is tailored to your viewer, workstation, and facility needs. Speak with our team for a fast, accurate quote backed by USA-based support.
