12MP Color NDT Display
31″ Unified Review Station
The DBI 12MP NDT display replaces a two-monitor review station with one 31-inch screen. It consolidates large-format radiograph review and multi-image layouts onto a single seamless surface, with one uniform calibration across the whole display. Every unit pairs with CFS and is integrated and serviced in the USA.
• 31″ 12MP Flagship Format
• Replaces a Dual-Monitor Review Station
• Calibrated Grayscale for DICONDE Review
12MP Resolution
|
Integrated Calibration
|
31″ Single Screen
|
Built for DICONDE Workflows
Engineered to Unify the Review Station
The 12MP NDT display brings large-format review onto one 31-inch surface with a single uniform calibration.
It is purpose-built for enterprise review rooms that want one screen to carry the whole inspection workflow.
One Screen, One Calibration, Whole Workflow
A Single Display to Replace Two Monitors

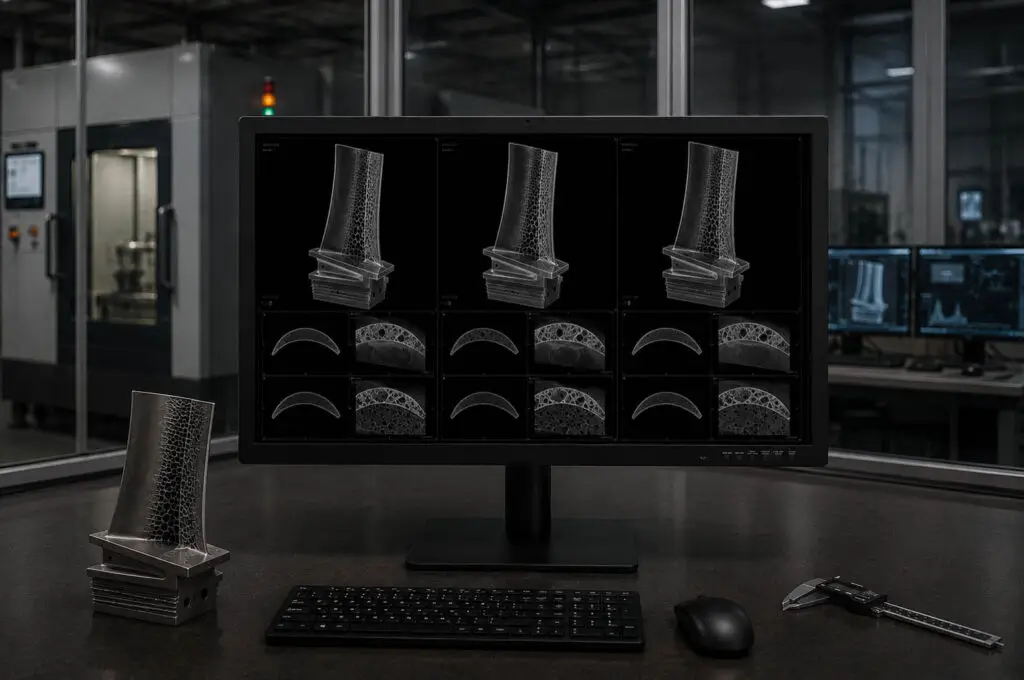

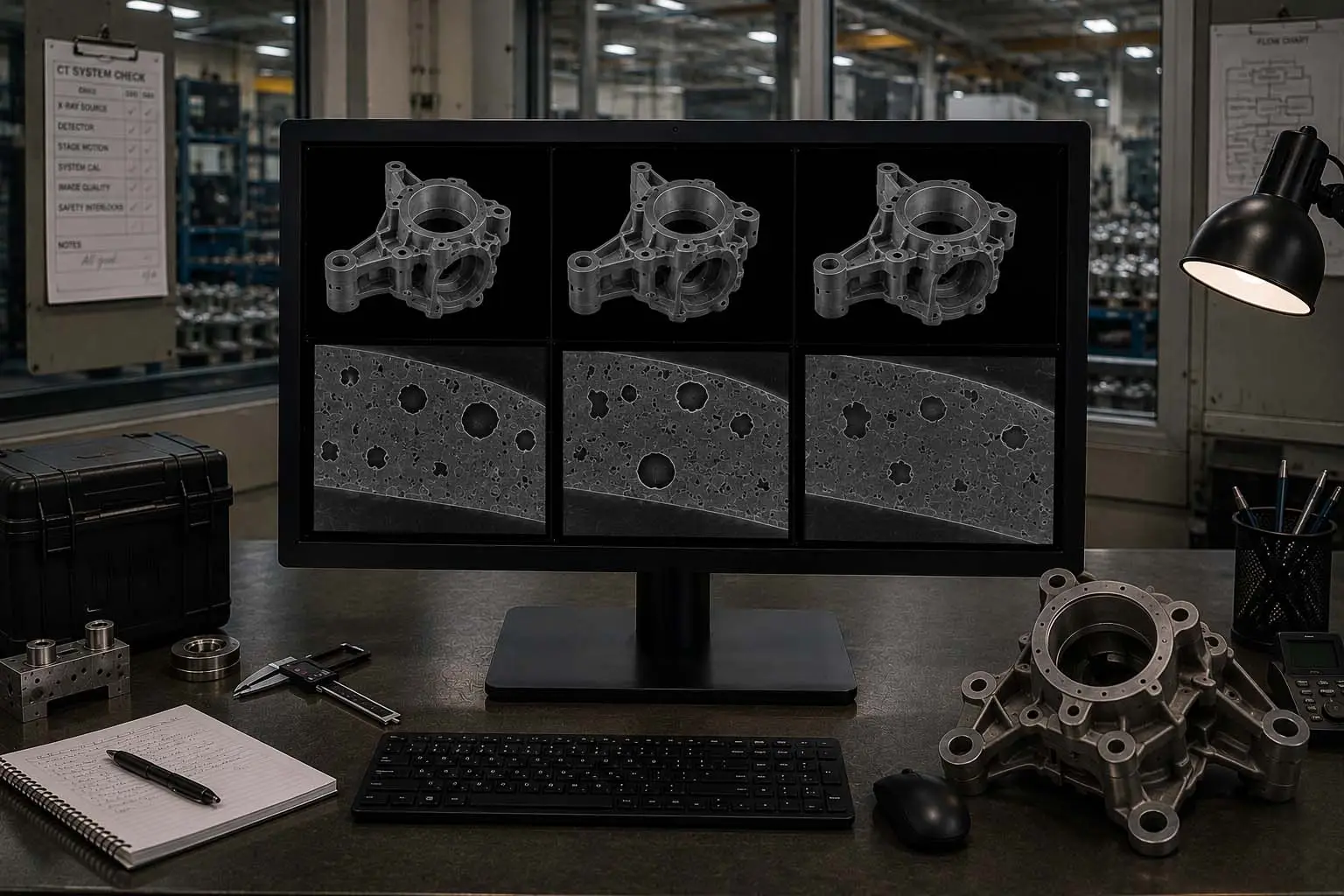

A single 31-inch surface carries the images that once needed two monitors, with no bezel splitting the workflow. Multi-resolution modes adapt the screen to the method at hand, from a single large radiograph to a tiled multi-image layout. One calibration covers the whole display, so consistency never depends on matching two separate screens.
- 31″ Surface Replaces a Dual-Monitor Station
- No Bezel Gap Across the Workflow
- Multi-Resolution Modes for Various Methods
- Space for Large Multi-Image Layouts
- One Calibration for the Whole Surface
Uniform Calibration Across 31 Inches
One Surface, One Grayscale Standard

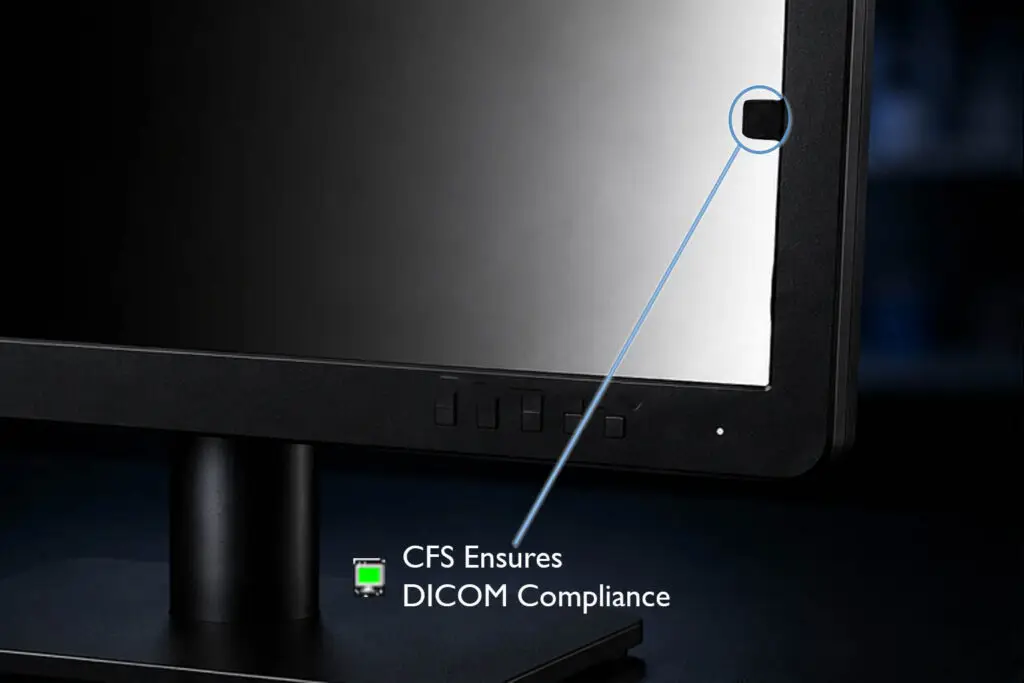

A 31-inch multi-image surface only works if calibration is uniform everywhere on it. A built-in front sensor and DBI’s CFS Calibration Suite hold the entire display to the DICOM grayscale standard as one surface. Scheduled checks and drift alerts keep every region in tolerance.t.
- Uniform DICOM GSDF Across 31 Inches
- Front-Sensor Automatic Calibration
- CFS Local Agent and WebManager Included
- Conformance Reporting and E-mail Alerts
Consistent Image Quality over Time
Dependable Calibration Over the Service Life
On a single large surface, every indication has to read the same wherever it appears. Luminance uniformity control and a backlight sensor keep brightness even across all 31 inches. Digital ambient light compensation and scheduled re-calibration hold it steady for years.
- Stable Luminance Uniformity
- Backlight Sensor for Long-Term Stability
- Digital Ambient Light Compensation
- Consistent Output Across the Screen
- Scheduled Conformance and Calibration via CFS
Enterprise Support and USA Integration
Tested, Calibrated and Serviced in Colorado
A flagship review station deserves flagship support. DBI integrates, calibrates, and tests each 12MP unit at its Colorado facility, with its own calibration software behind it. USA-based support and a domestic RMA process keep enterprise review rooms running.
- Advance Hot-Swap Included
- 3 Calendar Year Warranty
- Integrated and Tested in the USA
- Engineered for Long-Term Reliability in High-Demand Environments
- DBI-Developed CFS Calibration Software
- Built for Continuous Enterprise Use
12MP Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
4200 x 2800 (12MP)
Screen Size and Active Area
31″; 3:2 Aspect Ratio; 25.75″ x 17.125″ Active Display Area
Screen Type
LED Backlit LCD
Brightness
1200 cd/m2; 420-800 cd/m2 Calibrated Brightness
Contrast
1500:1
Viewing Angle
178 Degrees Typical
Pixel Pitch
0.1554 x 0.1554 mm
Response Time
5ms (GtG at Faster)
Video Inputs
DisplayPort (2), USB (1 Up, 3 Down, Ver 3.0)
Dimensions W x H x D (Inches)
27.7 x 26.1 x 11 w/Stand; 27.7 x 19.7 x 3.3 w/o Stand
Weight (lbs)
30.9 lbs w/Stand; 23.6 w/o Stand
Power Supply
External for added reliability. AC Input to power brick: 100-240V
Power Consumption (on/savings)
160w max./Power save mode < 5w
Certifications
cUL, IEC 60950-1, IEC 55032, IEC 55024, RoHS, REACH, WEEE
Recommended Use
Unified Review Station, Enterprise Inspection Review, Large-Format & Multi-Image Layouts
Other Features
12MP NDT FAQs
Can a 12MP display replace my two-monitor setup?
Yes. One 31-inch 12MP screen carries the workload of a dual-display station, with no bezel gap and one uniform calibration across the surface.
Who is the 12MP intended for?
Enterprise review rooms and high-throughput inspection teams that want a single large, uniformly calibrated surface for large-format and multi-image review
Does it support different review layouts?
Yes. Multi-resolution modes let the surface adapt from a single large radiograph to a tiled multi-image layout. Confirm supported modes on the current spec sheet.
Is it suitable for multi-site or enterprise deployment?
Yes. CFS calibrates, monitors, and reports across many displays from one console, with drift alerts, so administrators can manage an enterprise fleet from a single interface.
Is it built for DICONDE workflows?
Yes. It is calibrated to the DICOM grayscale standard used for DICONDE review (ASTM E2339), so DICONDE images display with consistent grayscale across the full 31-inch surface.
How is such a large surface kept stable over time?
A backlight sensor compensates as the panel ages, ambient compensation steadies output as room light changes, and CFS re-calibrates on a schedule to hold consistency across the service life.
One screen can carry the whole inspection workflow.
Talk to our team about a 12MP 31-inch NDT display that replaces a dual-monitor station, calibrated with in-house CFS software and serviced in the USA.
