27" Full HD Surgical Display
DB27SF
The DB27SF is a 27″ Full HD surgical display built for endoscopy towers, booms, and tight OR footprints. Its IPS panel renders an extended red range, so tissue and vascular detail read clearly during live procedures. A protection-glass front and IP35-rated face stand up to fluids and routine cleaning.
- 27″ Full HD IPS Display
- Extended Red Color Range
- Sealed, Cleanable Protection Glass
Full HD 1920×1080
|
1000 cd/m² Brightness
|
IP35 Front
|
3-Year Warranty
Clear Color for the Operating Room
The DB27SF pairs a Full HD IPS panel with an extended red range, so surgical video looks natural and consistent. It is sized and sealed for daily use on booms and procedure carts.
Full HD IPS Clarity
Crisp Detail at a Practical Size
The 27″ Full HD IPS panel delivers crisp, even images for live surgical review. A 178-degree viewing angle keeps the picture stable for staff standing around the field.
- 1920 × 1080 Full HD Resolution
- IPS Panel, 178° / 178° Viewing
- 1000 cd/m² Brightness
- 1000:1 Contrast Ratio
- 10-Bit Color Depth
Extended Red Color Range
Realistic Tissue and Vascular Tones
The panel covers an extended red range to match other Full HD surgical equipment. That helps the team see realistic color where it matters most, in the red spectrum of tissue and blood.
- Extended sRGB 115% Color (Deep Red)
- Tuned for Surgical Red Tones
- Consistent Color Across the Screen
- Pairs With Full HD Camera Sources

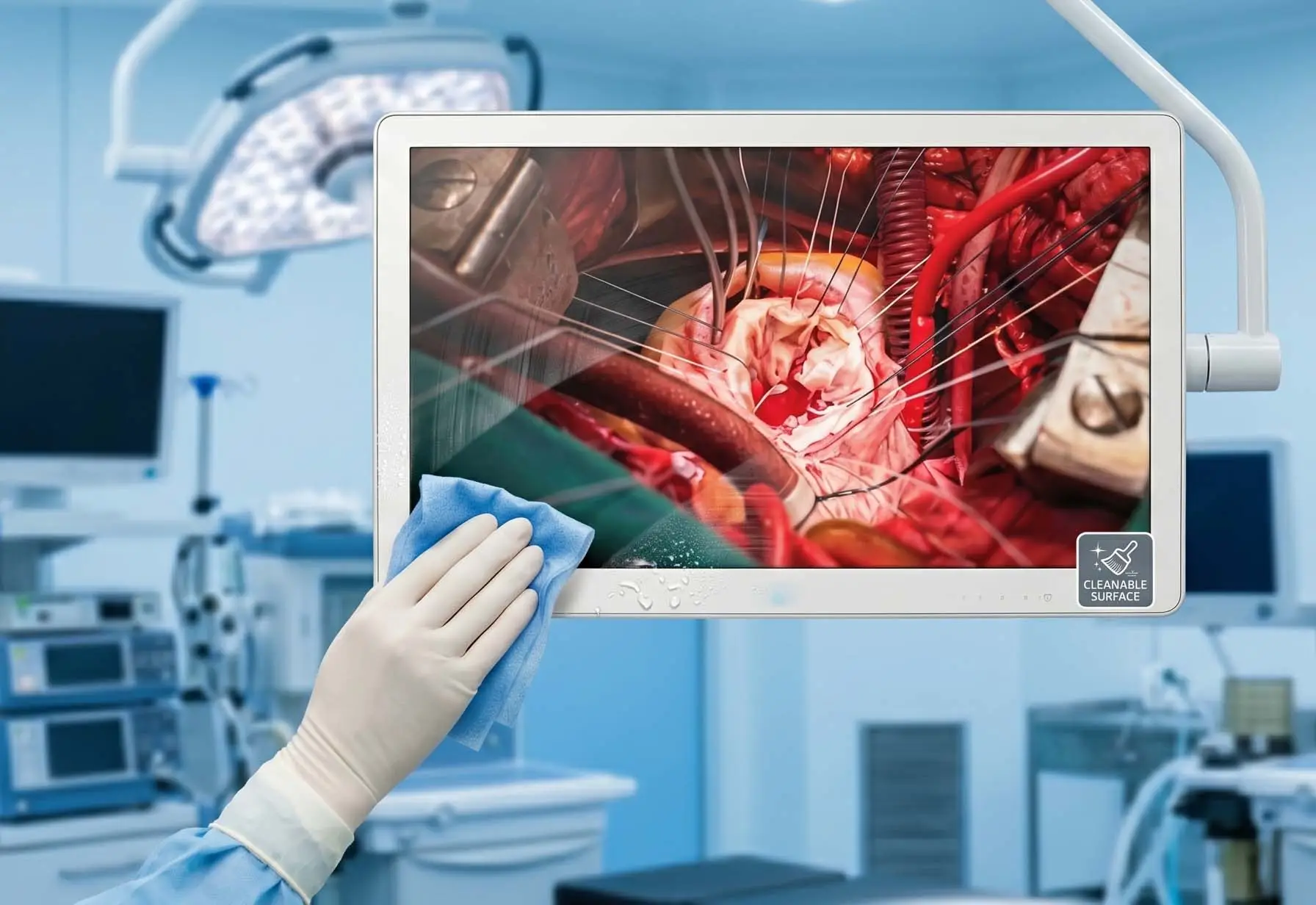

Sealed, Cleanable Build
Ready for Fluids and Wipe-Down
A protection-glass front gives a flat, cleanable surface and shields the panel from splashes. The face carries an IP35 rating and the rear is rated IP32, so the unit holds up to OR cleaning routines. Brightness Stabilization and Flicker Safe keep the image steady and reduce eye strain over long cases.
- Protection-Glass Front
- IP35 Front, IP32 Rear
- 8H Hard-Coated Surface
- Brightness Stabilization
- Flicker Safe for Reduced Eye Fatigue
USA-Based Service, Support, and Warranty
Comprehensive Warranty & Industry-Leading Support
Backed by a 3-year warranty and USA-based service, this display delivers reliable support, faster response times, and long-term operational confidence. Every unit is calibrated, tested, and supported from DBI’s Colorado facility. Trusted daily by PACS administrators, radiologists, and enterprise healthcare organizations, DBI is known for responsive service.
- 3-Year Warranty, Extended Coverage Optional
- Calibrated and Supported in the USA
- Direct Access to USA-Based Support Teams
- Proven Across Enterprise Healthcare Environments
DB27SF Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
1920 × 1080 (Full HD)
Screen Size and Active Area
24″, 16:10 Aspect Ratio; 20.5 x 18.875″ Active Display Area
Panel Type
IPS with protection glass
Brightness
1000 cd/m2
Contrast
1000:1
Viewing Angle
178 Degrees Typical
Pixel Pitch
0.3114 × 0.3114 mm
Response Time
5ms (GtG at Faster)
Video Inputs
HDMI ×1; DVI-D In ×1 (D-Sub/Component via adapter); 3G-SDI In ×1; S-Video ×1
Dimensions W x H x D (Inches)
25.8 × 16.3 × 2.4 in w/o Stand;
Weight (lbs)
17.0 lbs w/o Stand
Power Supply
External adapter; AC 100–240V, 50/60 Hz; DC 19V/6.32A; 120 W max; <0.3 W off
IP Rating
IP35 front; IP32 rear
Certifications
ANSI/AAMI ES 60601-1; IEC 60601-1 / IEC 60601-1-2; CAN/CSA-C22.2 No. 60601-1; FCC Part 15 Class A; CE MDD Class I; RoHS; REACH; WEEE
Warranty
3-Year Limited
FAQs
Is the DB27SF a Full HD or 4K display?
It is a 27-inch Full HD (1920 × 1080) surgical display. For 4K detail at the same size, see the DB27SF-4K.
Why does the color look better for surgical video?
The IPS panel covers an extended red range, which helps tissue and vascular tones look realistic alongside other Full HD surgical gear.
Can it be cleaned with OR disinfectants?
Yes. The protection-glass front is flat and wipeable, with an IP35 front rating. Follow your facility's approved cleaning protocol.
What sources can it take?
HDMI, DVI-D, 3G-SDI, and S-Video, with DVI and SDI loop-out to feed a second monitor.
How does it mount?
It uses 100 × 100 mm or 200 × 100 mm VESA patterns and fits standard booms, arms, and wall mounts.
The DB27SF is configured, tested, and supported in the USA and backed by a 3-year warranty.
The DB27SF is configured, tested, and supported in the USA and backed by a 3-year warranty. Talk with the DBI team about surgical displays for your practice.
