3MP Diagnostic Imaging Display - C3MPL
Engineered for high-volume radiology environments, this display delivers precise grayscale and color performance optimized for general diagnostic imaging, PACS review, and multi-modality workflows.
• Diagnostic-Grade Grayscale and Color Accuracy
• Automated DICOM Calibration
• Designed for High-Volume Diagnostic Environments
3MP Resolution
|
Integrated Calibration
|
KVM
|
Enterprise-Ready
Engineered for Diagnostic Clarity
Purpose-built for diagnostic imaging environments, this system combines calibrated performance, workflow efficiency, and long-term serviceability in a fully integrated solution.

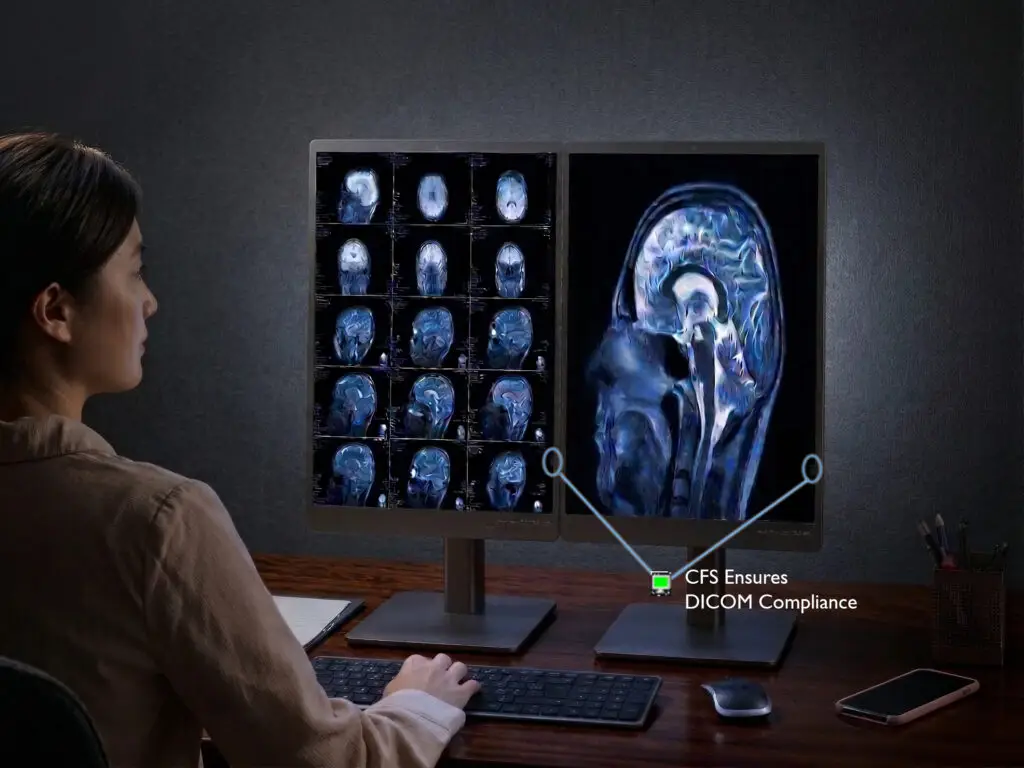

Automated DICOM Calibration with CFS Enterprise Software
Calibration, Compliance & Enterprise Management
Deliver consistent, diagnostic-quality images with automated DICOM calibration powered by CFS Calibration Suite®. The system monitors and adjusts luminance and grayscale performance in real time or at scheduled intervals, eliminating manual intervention and reducing dependence on external QA tools.
Purpose-built for diagnostic environments, CFS Calibration Suite® maintains DICOM compliance, compensates for performance drift, and preserves image integrity over time—supporting reliable interpretation and long-term diagnostic confidence. Calibration performance ensures consistent adherence to DICOM standards across the system lifecycle.
- Ensures compliance to DICOM 3.14 Standard
- Includes Local agent and CFS WebManager
- Included with all display solutions
- Email Alerting for Proactive Workstation Maintenance
- In Depth reporting tools including NYC, NYS and Joint Commission
- 100% Developed by Double Black Imaging in the USA
- Productivity Toolkit Included
- Virtuoso Enterprise Management by DBI Available

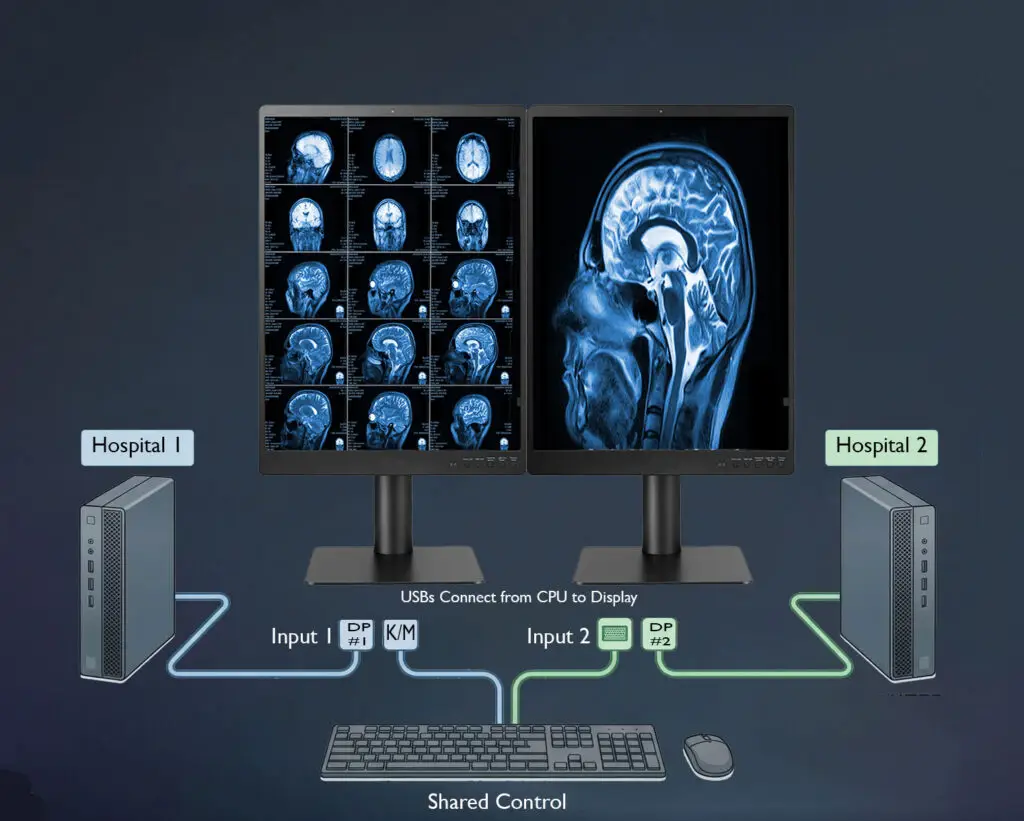

Integrated KVM for Multi-System Control
Streamlined Control for Multi-System Environments
Streamline workstation management with integrated KVM functionality, enabling control of multiple systems through a single interface. This reduces hardware complexity and improves efficiency in multi-source clinical environments.
- Single-point Control
- Reduces Workspace Complexity
- Multi-System & PACS Compatibility
- Seamless System Switching
- Improved Efficiency and Enhanced Focus
- Scalable Across Facilities

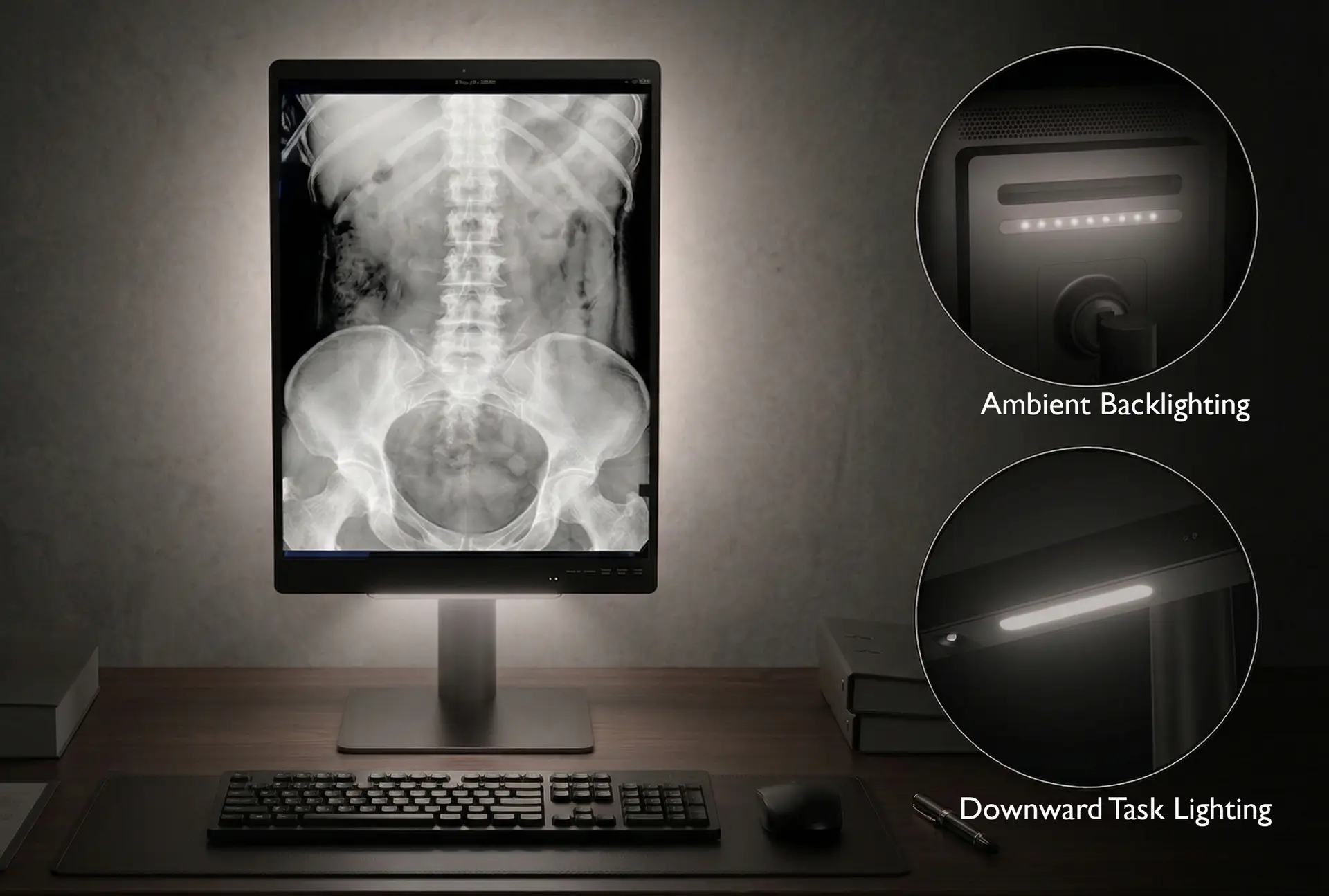

Optimized Ambient & Task Lighting
Optimized Viewing Conditions for Diagnostic Environments
Enhance viewing conditions with integrated ambient and task lighting designed for clinical environments. Balanced illumination helps reduce eye strain and supports accurate image perception during extended use. Controlled lighting conditions are essential for maintaining consistent visual performance and accurate diagnostic interpretation.
- Reduced Eye Strain During Extended Use
- Improved Contrast Perception
- Consistent Viewing Conditions
- Integrated Task & Backlighting System
- Eliminates External Lighting Dependencies
- Supports Controlled Reading Room Conditions
5-Year Warranty with USA-Based Service & Support
Comprehensive Warranty & Industry Leading Support
Backed by a comprehensive 5-year warranty and USA-based service, this system delivers reliable support, faster response times, and long-term operational confidence. All systems are tested, integrated, and serviced at DBI’s Colorado facility—ensuring consistent quality and rapid issue resolution.
Trusted daily by thousands of PACS Administrators, Radiologists, and enterprise healthcare organizations, DBI is known throughout the industry for delivering award-winning support and consistently reliable service.
- Advance Hot-Swap Included
- 5 Calendar Year Warranty
- Direct Access to USA-Based Support Teams
- Faster Resolution and Reduced Downtime
- Long-Term Reliability
- Tested, Integrated & Serviced in the USA
- Proven Across Enterprise Healthcare Environments
C3MPL Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
1536 x 2048 Portrait; 2048 x 1536 Landscape (3MP)
Screen Size and Active Area
21.3″ Diagonal; 12.875″ x 17.065″ Active Area
Screen Type
LED Backlit LCD
Brightness
1100 cd/m2; 350-600 cd/m2 Calibrated Brightness Recommended
Contrast
1800:1
Viewing Angle
178 Degrees Typical
Pixel Pitch
0.2115mm x 0.2115mm
Response Time
5ms (GtG at Faster)
Video Inputs
DisplayPort (2), DVI-D (1), USB (2 Up, 2 Down, Ver 3.0)
Dimensions W x H x D (Inches)
13.5 x 25.2 x 9.24 w/ Stand; 13.5 x 19.1 x 2.9 w/o Stand
Weight (lbs)
15.4 lbs w/ Stand ; 11.1 lbs w/o Stand
Power Supply
External for added reliability. AC Input to power brick: 100-240V
Power Consumption (on/savings)
75W/ Less than 2W during Power save
Certifications
AAMI ES60601-1, ANSI, CAN/CSA C22.2 No. 60601-1, cUL, DDC/CI, EN 55032, EN 60601-1, EN
606601-1-2, EN 60950-1, EN55024, FCC, FCC Part 15 A, GMP, IEC 55024, IEC 55032, IEC 60601-1, IEC
60601-1-2, IEC 60950-1, ISO 13485, KGMP, MFDS, REACH, RoHS, WEEE, FDA 510(k) Class II
Recommended Modalities
CR, CT, DR, MR, Ultrasound, NucMed, PET, 3D, PACS
Other Features
3MP Color Display FAQs
What clinical applications are best suited to a 3MP diagnostic display?
3MP displays deliver a native resolution of 2048 × 1536 pixels, making them well-matched to primary reads of CR/DR chest radiographs, musculoskeletal plain films, and fluoroscopic image review. Their pixel density comfortably meets DICOM Grayscale Standard Display Function (GSDF) calibration targets for general radiology workflows without the overhead associated with higher-resolution panels, keeping total cost of ownership lower in high-throughput reporting environments. This 3MP Display Solution is FDA Cleared for all digital imaging except Breast Imaging.
Does this meet ACR Guidelines?
Yes. The system is designed to meet DICOM Part 14 (Grayscale Standard Display Function) requirements and supports compliance with ACR guidelines for diagnostic imaging environments. Automated calibration ensures consistent luminance and grayscale performance over time. Both are widely used in radiology, and the best choice depends on workflow and user preference. Dual-head systems offer flexibility for separating studies and applications, while large-format displays provide a seamless viewing experience with fewer bezels and a cleaner ergonomic setup. For breast imaging, the display must be FDA-cleared for mammography use regardless of configuration.
Which is better a 3MP Dual Head or a 6MP/8MP Large Format Screen?
A 3MP dual-head configuration provides flexibility for general imaging workflows, while 6MP and 8MP large-format displays offer a unified workspace with higher resolution. Larger displays improve efficiency by reducing image navigation and supporting side-by-side comparisons.
How does Auto-Calibration work?
CFS Calibration Suite® monitors and adjusts luminance and grayscale performance to maintain DICOM compliance. Calibration can be performed in real time or at scheduled intervals, eliminating the need for manual adjustments and external QA tools.
Is this compatible with my PACS system?
Yes. The system is designed for seamless integration with leading PACS platforms and imaging systems. It supports multi-vendor environments, making it suitable for hospitals and enterprise healthcare networks.
Is this solution suitable for multi-facility or enterprise deployments?
Yes. The system supports enterprise management, centralized monitoring, and standardized deployment across multiple locations, making it ideal for healthcare networks and multi-site organizations.
Can this display be used for teleradiology applications?
Yes. This system is well-suited for teleradiology environments and is often configured to match the performance of in-hospital workstations. With automated DICOM calibration, stable luminance, and consistent grayscale accuracy, it ensures that remote reading conditions align with clinical standards—supporting reliable image interpretation across locations.
What factors should IT and PACS teams evaluate besides display resolution and brightness?
When evaluating enterprise imaging solutions, IT and PACS administrators often consider much more than display hardware alone. Centralized calibration management, remote monitoring capabilities, QA reporting, deployment scalability, workflow integration, and long-term vendor support can all play a major role in maintaining consistency and reducing operational workload across the imaging environment.
