8MP Color NDT Display
Large-Format Inspection Review
• 8MP Large Format for High-Resolution Review
• Multi-Image and CT Slice Layouts
• Calibrated Grayscale for DICONDE Review
8MP Resolution
|
Integrated Calibration
|
Large-Format Review
|
Built for DICONDE Workflows
Engineered for Large-Format Inspection Review
The 8MP large-format NDT display pairs a high-resolution panel with DICOM-calibrated grayscale and automated QA.
It is purpose-built for large DR detector panels, industrial CT review, and multi-image inspection layouts.
Large-Format Detail Without Scaling Down
Ideal for Big DR Panels and CT Slices

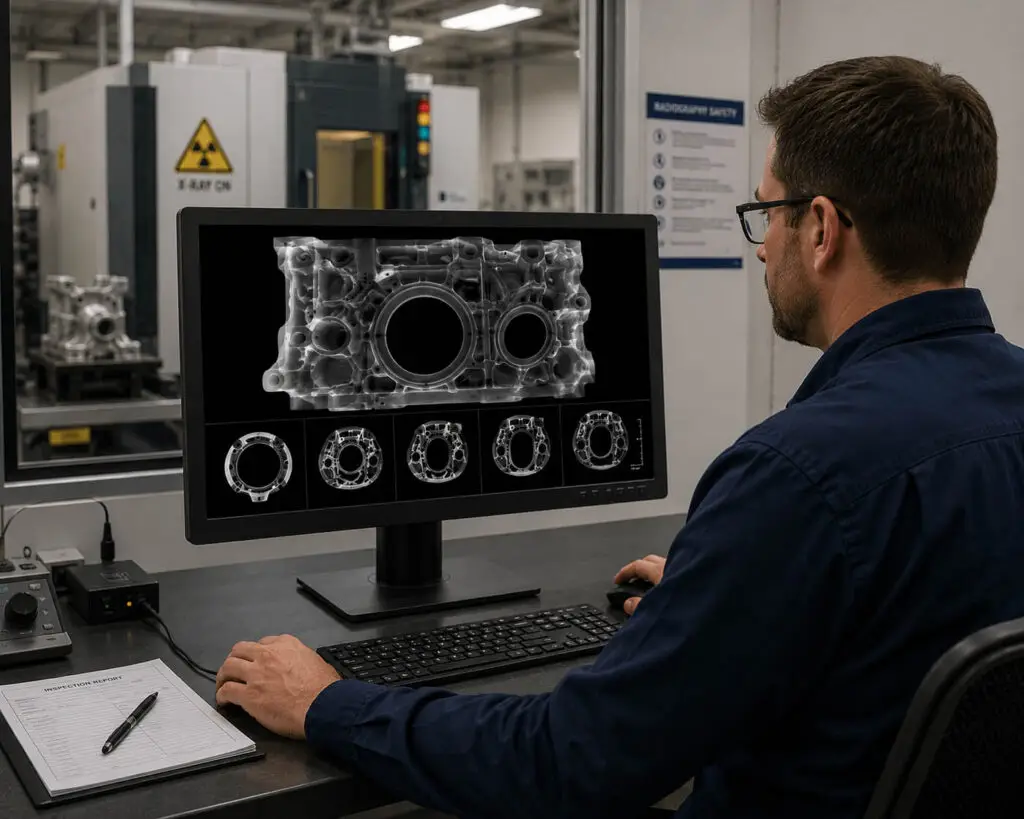

An 8MP large-format screen shows high-resolution radiographs at full size, so detail is not lost to scaling. CT slice stacks and multi-image layouts fit on one surface, which keeps related views together during interpretation. High bit-depth rendering and uniformity correction keep every region consistent.
- 8MP Large-Format Resolution
- Full-Size Display of Large DR Images
- Multi-Image and CT Slice Layouts
- High Bit-Depth Grayscale Rendering
- Uniformity Correction
GSDF Calibration for Large Format Imaging
Accuracy That Spans the Whole Screen
Large DR and CT images fill the entire panel, so calibration cannot be uneven. A built-in front sensor and DBI’s CFS Calibration Suite hold the full large-format surface to the DICOM grayscale standard automatically. Conformance is logged for audit, and any drift triggers an alert.
- DICOM GSDF Across the Full Large Panel
- Front-Sensor Automatic Calibration
- Real-Time or Scheduled Calibration
- CFS Local Agent and WebManager Included
- Conformance Logs and Drift Alerts
Stable Luminance Through Long Reviews
Large-Format Consistency Over Time
Large-format review sessions run long, and a big panel has to hold its output throughout. A backlight sensor and digital ambient light compensation keep luminance and grayscale steady across the whole surface. Scheduled re-calibration maintains the target across the service life.
- Backlight Sensor for Long-Term Stability
- Full-Panel Luminance Consistency
- Digital Ambient Light Compensation
- Steady Output Over Long Sessions
- Scheduled Conformance and Calibration via CFS
The Same Resolution, a Very Different Package
USA Integration, Software, and Service
8MP displays are widely available, but DBI’s package is not. DBI calibrates it with in-house CFS software, integrates and tests it in Colorado, and backs it with USA-based support. Customers reach a domestic team directly, with no overseas RMA process.
- Advance Hot-Swap Included
- 5 Calendar Year Warranty
- Direct Access to USA Based Support Personnel
- In-House CFS Calibration Software Development
- Sustained Long-Term Operational Reliability
- Tested, Integrated & Serviced in the USA
8MP NDT Display Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
3480 x 2160 (8MP)
Screen Size and Active Area
31.5″ Diagonal; 27.48″x15.43″ Active area
Screen Type
LED Backlit LCD
Brightness
1000 cd/m2 Typ.; 350-600 cd/m2 Calibrated Brightness Recommended
Contrast
2000:1
Viewing Angle
178 Degrees
Pixel Pitch
0.18159 x 0.18159 mm
Response Time
14ms (GtG)
Video Inputs
DisplayPort (2), USB 3.0 (2 Up, 2 Down)
Dimensions W x H x D (Inches)
29. 9 x 25.4 x 11.02 w/ Stand; 29.9 x 18.3 x 3.11″ w/o Stand
Weight (lbs)
28.6 w/ Stand ; 21.3 w/o Stand
Power Supply
External for added reliability. AC Input to power brick: 100-240V
Power Consumption (on/savings)
120w max./Power save mode < 1w
Device Safety & EMC for Industrial Imaging
cUL, EN/IEC 60950-1, EN/IEC 55032, EN/IEC 55024, RoHS, REACH, WEEE
Recommended Use
Large DR Panel Review, Industrial CT Review, Multi-Image Inspection Layouts
Other Features
8MP NDT FAQs
What is the 8MP NDT display best suited for?
An 8MP display provides a larger viewing workspace for radiologists reading CT, MR, PET/CT, and multimodality studies. The additional resolution helps reduce application switching and allows more images to remain visible simultaneously during interpretation.
8MP is a common resolution — what makes DBI's different?
DBI adds in-house CFS calibration software, USA integration and testing, and domestic support. The value is in the calibration, QA, and service, not only the resolution.
Can it review industrial CT datasets?

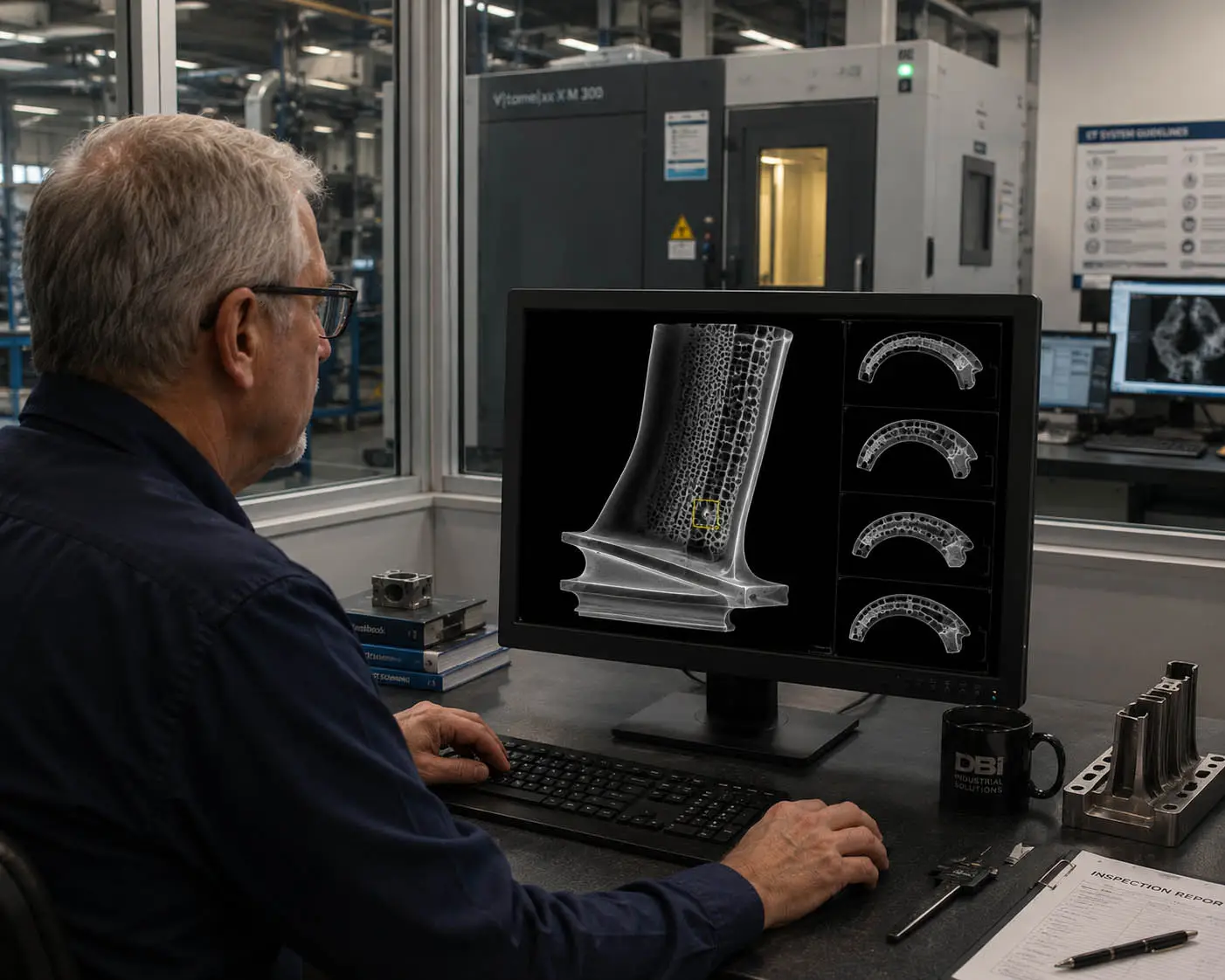

Yes. The large surface suits CT slice review and multi-slice layouts, keeping related cross-sections visible together during interpretation.
Can several images be shown at once?
Yes. The large format supports multi-image layouts, so a big DR image and supporting views can sit on one screen. Layout control depends on your DICONDE review software.
Is it built for DICONDE workflows?
Yes. It is calibrated to the DICOM grayscale standard used for DICONDE review (ASTM E2339), so DICONDE images display with consistent grayscale across the full panel.
How is output kept stable during long sessions?
A backlight sensor and ambient compensation steady luminance and grayscale, and CFS re-calibrates on a schedule, so the large panel holds its output through long CT and DR reviews.
Large DR panels and CT datasets deserve a screen
that doesn't diminish their size.
Talk to our team about an 8MP large-format NDT display, calibrated with in-house CFS software and serviced in the USA.
