Double Black Imaging’s Gemini series 8MP+ (32HQ713D-B) color LED backlit LCD doubles the resolution and eliminates the gap between screens in multi-head display configurations; this allows the eye to seamlessly glide between images uninterrupted while increasing productivity and user efficiency. Complete with auto-calibration technology, these wide-screen models enable multi-modality imaging from a single 8MP Color LED display.

DBI’s Gemini 8MP+ Color LED monitor (32HQ713D-B) features exceptionally high brightness and high contrast ratios, and its auto-calibration capability ensures consistent diagnostic quality images over years of use. Confidence is high and workflow is enhanced with our productivity tools and wide viewing angle.

The C8MPG+, 8MP Color LED Backlit LCD (32HQ713D-B) is equipped with built in front sensors for hands-free automatic DICOM 3.14 calibration, as well as backlight sensors and ambient light sensors to maintain stability and accuracy over time.

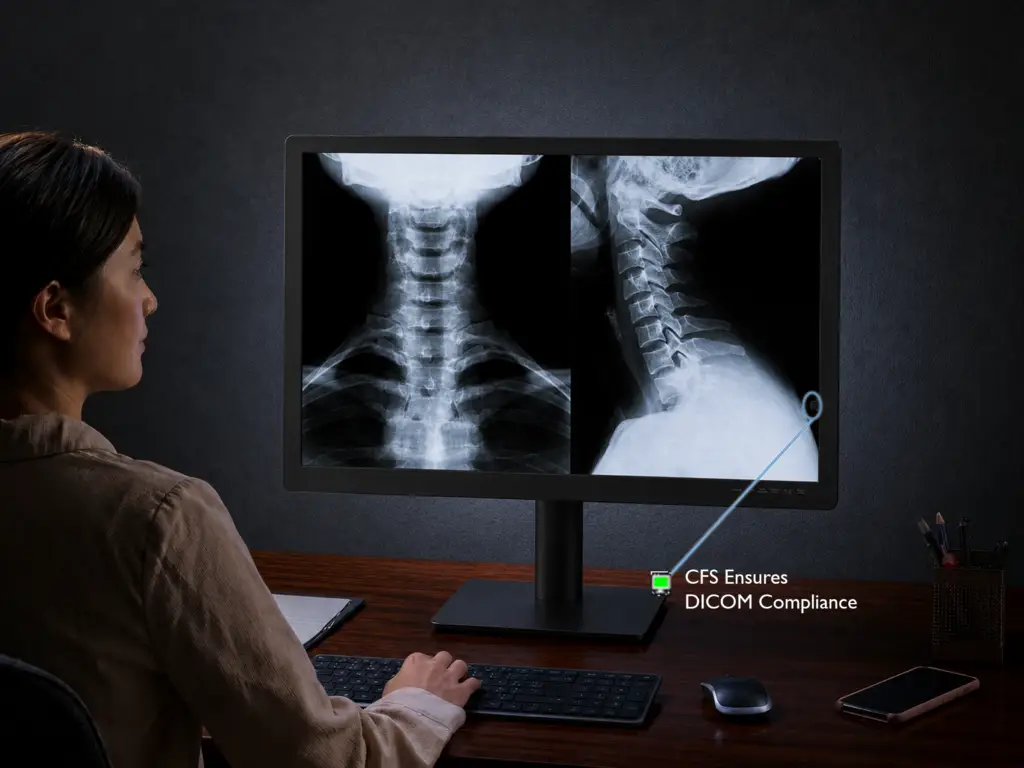

Each C8MPG+(32HQ713D-B), 8MP Color LED medical monitor includes CFS Calibration software from Double Black Imaging:

• DICOM 3.14 Automatic calibration with local and Web-based remote administration
• Email alerting for proactive workstation maintenance
• Total control of display settings, including remote adjustment and calibration testing
• Built in Visual tests for DICOM Compliance
• Comprehensive reporting for Joint Commission, MQSA, Fleet tracking, asset management, and DICOM compliance
• DBI’s exclusive Radiologist Productivity toolkit

This 8 Megapixel Color LED monitor can be used for viewing of grayscale or color images – including multi-modality exams involving X-Ray, DR, CR, MRI, US, PET, 3D, Cardiology, NucMed, and Digital Pathology.

Double Black Imaging backs each diagnostic display with our signature 5-year warranty. Our team has a renowned history of providing the industry’s finest customer service; we are continually acknowledged by thousands of Radiologists and IT Professionals who put their trust in us every day.

Call now to request a quote on the Image Systems Gemini Series 8MP+ Large Format Display!

G-Series Technical Specifications

G Series Color 8G
Size 31.5″
Resolution 3840 x 2160 (8MP)
Brightness 1000 cd/m2 Typ.; 350-600 cd/m2 Recommended Calibrated (User defined)
Contrast Ratio 2000:1 Typ.
Look Up Table 10-bit LUT (8 Bit +A-FRC)
Response Time 14 ms Typ.
Pixel Pitch 0.1554 x 0.1554 mm
Built In Sensors Front Sensor, Backlight Sensor, Ambient Light Sensor, Presence Sensor
Tilt/Swivel/Height Adjustment – 5 to +15° tilt | +/- 45° swivel | 110mm height adj
Panel Technology TFT AMLCD IPS Black, LED Backlit
Viewing Angle 178° Typ.

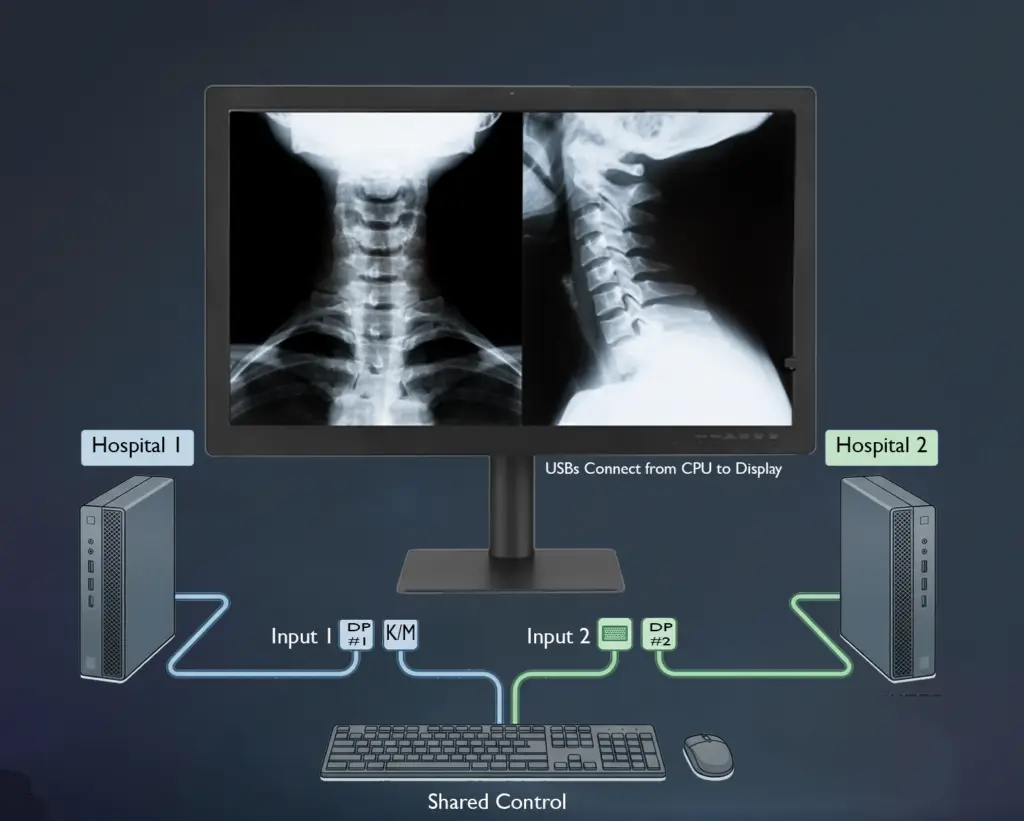

Video Input / USB (1up 1down) DisplayPort (2), USB 3.0 (2 Up, 2 Down)
Power Supply External for Added Reliability. AC Input to power brick: 100-240V
Power Consumption 120w max./Power save mode < 1w
Weight 28.6 lbs w/stand; 21.3 w/o stand
Dimensions ( W x H x D )
29. 9″ X 25.4″ X 8.76″
Mounting Options 100 x 100 mm VESA
Safety & Emissions IEC (IEC 60601-1 / IEC 60601-1-2), EN (EN 60601-1 / EN 60601-1-2), IEC (IEC 60950-1 / IEC 55032,
55024), EN (EN 60950-1 / EN 55032, 55024), cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO.
60601-1), FCC (FCC part 15), ISO13485, GMP, KGMP, WEEE, MFDS, FDA 510(k) Class II
Warranty 5-Year standard warranty with Hot Swap
PACS Application Multi-Modality PACS, CR/DR CT MRI US DSI DSA PET/CT Image Fusion X-Ray Nuclear Medicine
Calibration Software CFS Calibration Suite Included with Radiologist Productivity Toolkit

Product Sheet

Gemini 8MP+
