43" 4K Color Display
DB43-PACSOR
The DB43-PACSOR is a 43-inch 4K color display that brings PACS reference images into the OR beside live procedure video. The 8-megapixel screen shows one source full-screen or several sources side by side for the whole team. A sealed front with optional protective glass keeps the face cleanable between cases.
- 43-Inch 4K UHD (8MP) Display
- PACS and Live Video Together
- Sealed, Disinfection-Ready Front
500 cd/m²
4K UHD (8MP)
|
Multi-Source Viewing
|
Sealed Front
|
3-Year Warranty
PACS and Live Video on One OR Screen
The DB43-PACSOR is built for procedures that need reference imaging next to the live field. It combines a large 4K screen, flexible inputs, and a sealed, cleanable front.
Large 4K Multi-Source View

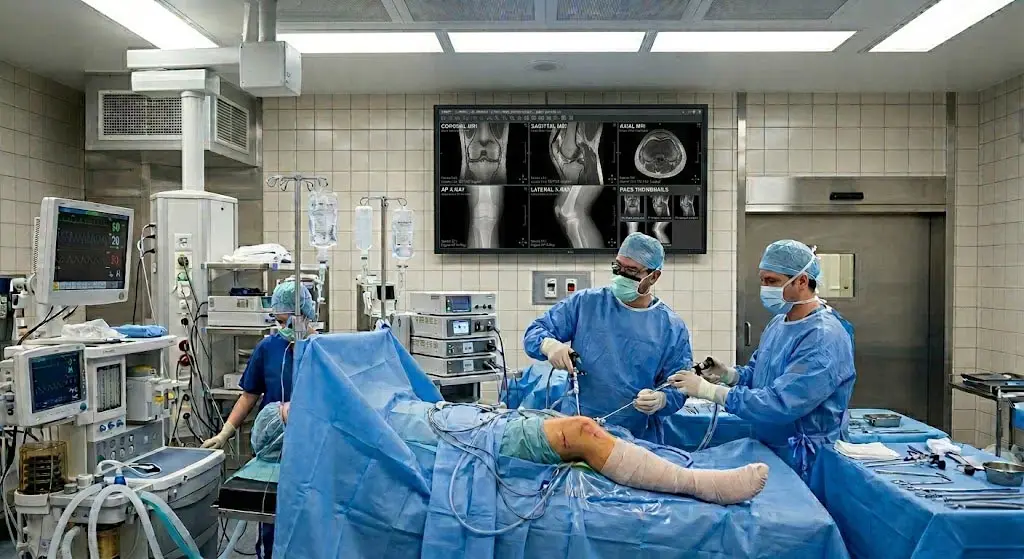

Reference Images Near the Surgical Field
The 43-inch screen renders fine detail at native 3840 × 2160 resolution. Staff can pull up a PACS image, a CT slice, or a prior study next to the live camera feed. A 178-degree viewing angle keeps the picture readable across the room.
- Native 3840 × 2160 (8MP) Resolution
- Single-Source or Multi-Source Layouts
- 178° / 178° Viewing Angle
- 500 cd/m² Brightness
- IPS Active Matrix Panel
Disinfection-Ready Design
Clean Between Cases

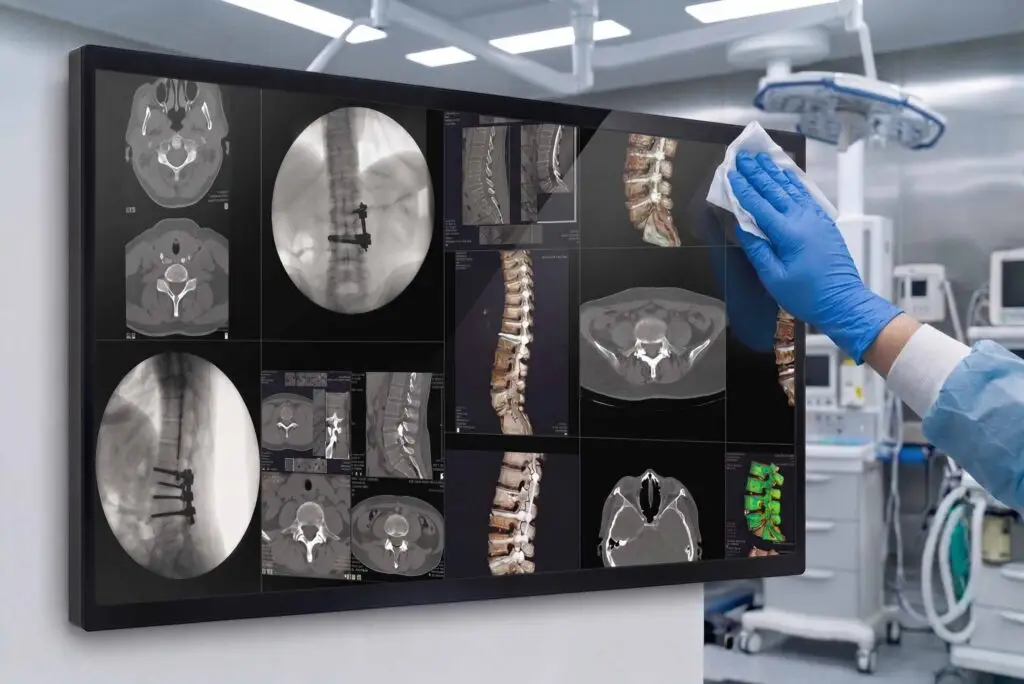

A sealed front protects against fluid and particulate ingress and gives a flat surface to wipe. An optional anti-reflection, anti-smudge glass adds a cleanable barrier and reaches an IPx2 front rating. The display fits standard infection-control routines.
- Sealed Front Against Ingress
- Optional Anti-Reflection, Anti-Smudge Glass
- IPx2 Front Rating With Optional Glass
- Flat, Wipe-Down Surface
- Black Bezel and Enclosure
Configurable Connectivity
Current Sources Plus an Upgrade Path

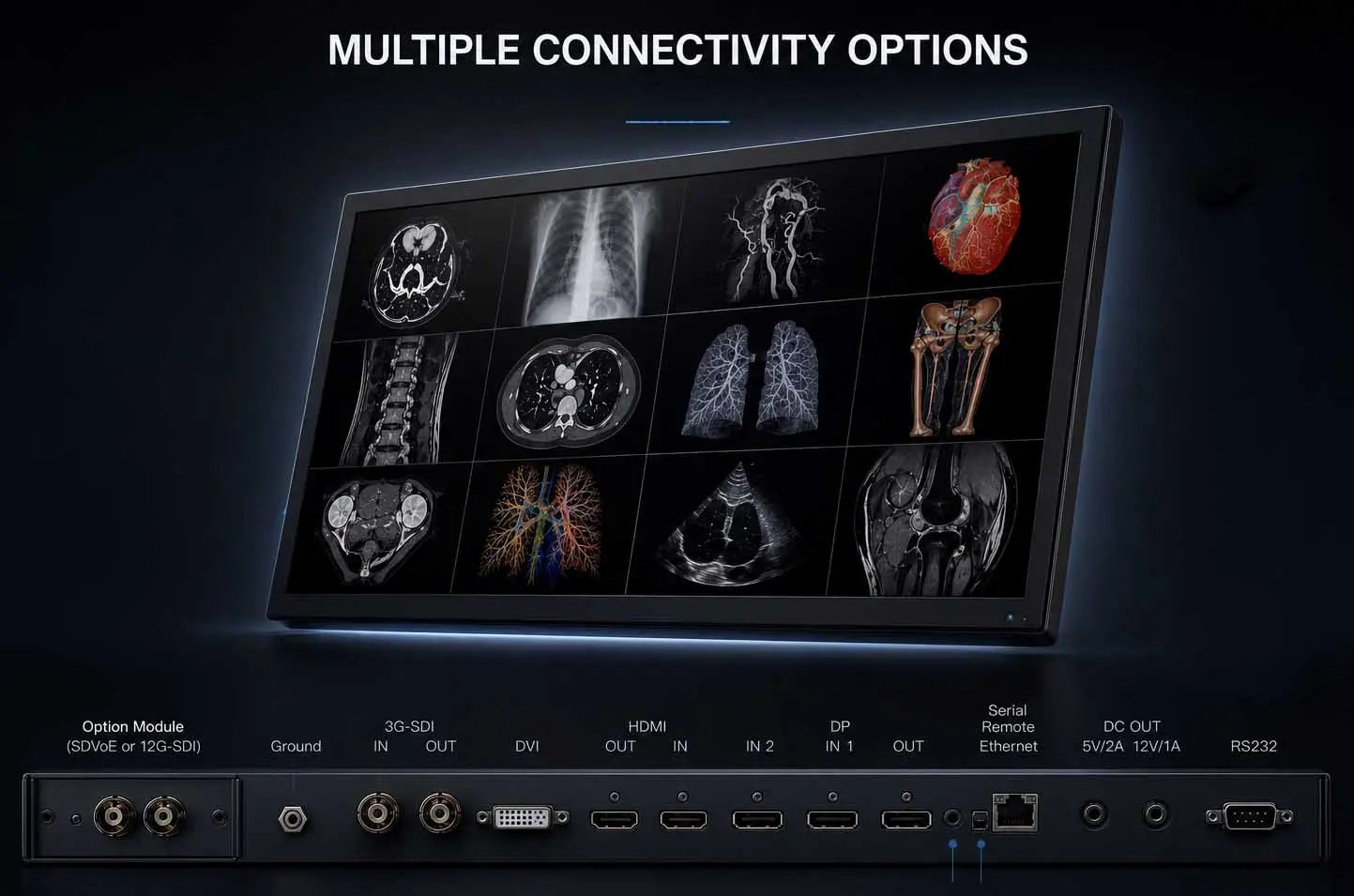

The DB43-PACSOR accepts HDMI 2.0, DisplayPort 1.2 (two inputs, one output), DVI-D, and 3G-SDI, with loop-out for daisy-chaining. An option module adds SDVoE or 12G-SDI for routed or high-bandwidth video. A native RS-232 connection, available as DB9, USB-B, or RJ45, supports remote control and room integration.
- HDMI 2.0 and DVI-D Inputs
- DisplayPort 1.2 (2 In / 1 Out)
- 3G-SDI In and Out
- Optional SDVoE or 12G-SDI Module
USA-Based Service, Support, and Warranty
Comprehensive Warranty & Industry-Leading Support
Backed by a 3-year warranty and USA-based service, this display delivers reliable support, faster response times, and long-term operational confidence. Every unit is calibrated, tested, and supported from DBI’s Colorado facility. Trusted daily by PACS administrators, radiologists, and enterprise healthcare organizations, DBI is known for responsive service.
- 3-Year Warranty, Extended Coverage Optional
- Calibrated and Supported in the USA
- Direct Access to USA-Based Support Teams
- Proven Across Enterprise Healthcare Environments
DB43-PACSOR Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
3840 x 2160
Screen Size
43″
Color Gamut/Display Colors(bits)
NTSC 72%/ 10 bits
Brightness
500 cd/m2
Contrast
1200:1
Viewing Angle
178 Degrees Typical
Pixel Pitch
0.2451 x 0.2451 mm
Response Time
8ms
IP Rating
IPx2 (when optional glass is installed)
Dimensions (Inches)
39.34 (L) × 2.85 (W) × 23.13 (H)
Weight (lbs)
36.16 lbs (w/o Glass) / 44.75 lbs (with Glass)
Power Supply
Internal AC 100V~240V
Power Consumption (W)
Full Brightness: 99, Stand By: 8.6
Certifications
ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC 60601-1,EN 60601-1-2, EN55032, EN55035, FCC Part 15-B, ICSE-003, RoHS
Glass (optional)
Anti-reflection, anti-smudge
Other Features
DC Output: DC 12V/1A ×1, DC 5V/2A ×1, DVI 5V/1A (14pin/16pin) ×1 ; Color Temp. Adjust: 5400K, 6500K, 7600K, 9300K, User; Gamma Selection:Native, 1.8, 2.0, 2.2, DICOM
FAQs
Why is this called PACS-in-OR?
It is built to show PACS reference images and prior studies next to live procedure video, so the team can compare on one large screen.
Can it show more than one source at once?
Yes. The 43-inch 4K screen runs a single source full-screen or splits across multiple inputs.
What is the upgrade path for routed or high-bandwidth video?
An option module adds SDVoE or 12G-SDI on top of the standard HDMI, DisplayPort, DVI-D, and 3G-SDI inputs.
How is the front cleaned?
The sealed front gives a flat wipe-down surface. With the optional anti-reflection glass, the front reaches IPx2. Follow your facility's cleaning protocol.
Is it a diagnostic display?
It is a surgical and procedural viewing display. It shows PACS and live imaging in the OR, but it is not a primary radiology reading station.
What video inputs does it have?
HDMI 2.0 In ×1; DisplayPort 1.2 In ×2, Out ×1; DVI-D In ×1; 3G-SDI In ×1, Out ×1
The DB43-PACSOR is configured, tested, and supported in the USA and includes a 3-year warranty
Ask the DBI team about the SDVoE or 12G-SDI module, mounting, and DICOM calibration.
