8MP Large Format Display with AFS- Teleradiology

Back To Categories > ,

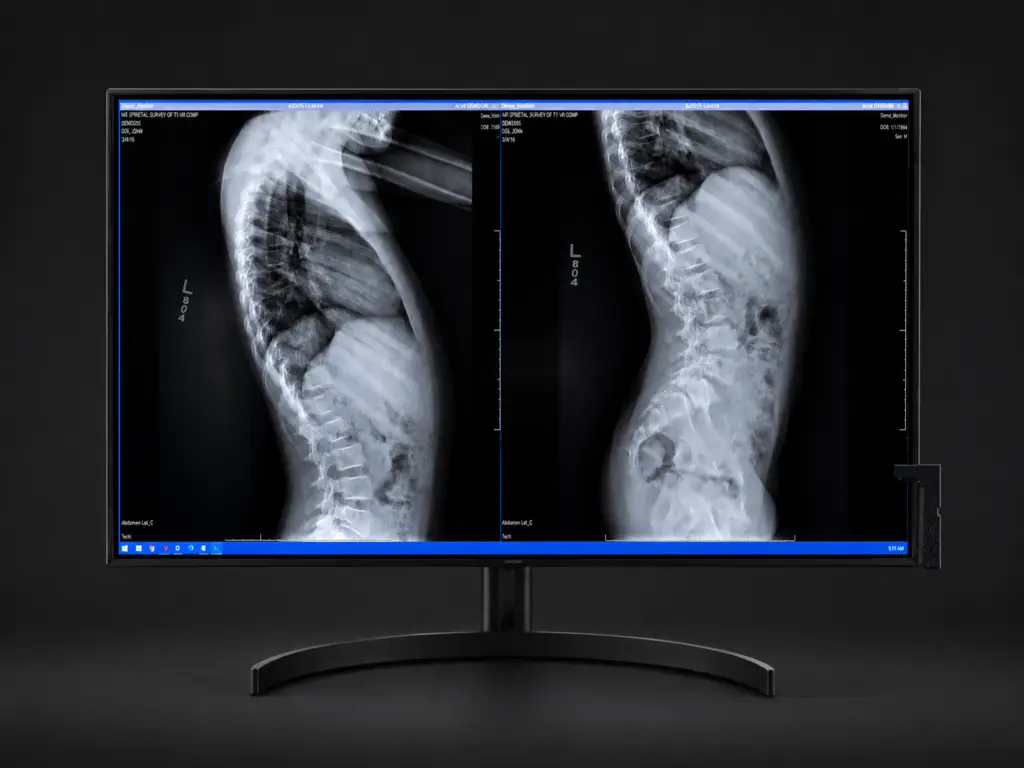

This sleek, virtually bezel-less 32″ 8MP color LED backlit display system doubles the resolution with a large format display that eliminates the gap between screens in multi-head display configurations. Allowing the eye to seamlessly glide between images uninterrupted increases productivity and user efficiency. Complete with advanced auto-calibration technology, these wide-screen 32HL512D-B LG medical monitor models enable multi-modality imaging from a single display.

The CL8MPS32C incorporates NanoIPS Technology to enhance on-screen colors and grays.  The 32HL512D-B LG diagnostic monitor utilizes improved color reproduction, delivering images vividly without color distortion.  With PBP (picture by picture) mode, this allows for two 4MP screen operation along with DisplayPort and HDMI input for easy connectivity to laptops or workstations.

DBI’s CL8MPS32C is equipped with AFS (Attachable Front Sensor) for hands-free automatic precise grayscale calibration, backlight sensors to maintain stability over time, auto-report generation and non-conformance alerts via the web.  Additional user friendly features include auto-dimming capability, image pinpointing, cursor wrap, and cursor genie functions – improving workflow and enhancing the user experience.



32″ 8MP Color LED Backlit Display with AFS

Description 8 Mega-Pixel Large Format LED Backlit display with AFS
Screen Type LED Backlit LCD
Size  31.5″
Resolution 3480 x 2160
Brightness 450 cd/m2 Max; 350 cd/m2 Calibrated with AFS/CFS
Contrast Ratio (typical) 1300:1
Response Time 5 ms
Viewing Angle 178° horizontal & vertical
Pixel Pitch  0.18159 x 0.18159 mm
DICOM Calibration Done with AFS (Attachable Front sensor) and CFS Calibration suite
Video Input/USB Display Port v. 1.4 (x2), HDMI v. 2.0 (x), USB Downstream v. 2.0 (x2), USB Upstream v. 2.0 (x1)
Dimensions H x W x D with stand 23.2 x 28.3 x 9.1″
Weight with stand/base (lbs.) 16.1 Lbs
Power Supply External
Power Consumption (on/savings) 65W/ Less than 0.5W during Power Save
Compliance/Safety Standards IEC (IEC60601-1/IEC60601-1-2), EN (EN60601-1/EN60601-1-2), CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90), FCC (FCC part 15 Class A), UL60601-1, FDA Class II, CE (MD93/42/EEC, 2007/47/EC), ISO 13485, GMP, KGMP, CE(EU), RoHS, REACH, WEEE, MFDS(KR)
Other Features AFS (Attachable Front Sensor) for Auto-Calibration, Client/Remote Administration Calibration Software included, Rear Sensor for Back light brightness control, Picture by Picture x2 mode, Flicker safe technology, VESA Standard Mounting configuration, Other Mounting options available, 3 year warranty
