21″ 2MP Color Clinical Display - CL2MPS+
The CL2MPS+ is a 21.3″ 2-megapixel color display built for PACS review and multi-modality clinical workflows. An embedded front sensor maintains automated DICOM 3.14 calibration for consistent image presentation throughout the day. It supports both portrait and landscape orientation, making it a flexible fit across the imaging enterprise.
• Color and Grayscale Multi-Modality Review
• Automated DICOM 3.14 Calibration
• Portrait and Landscape Orientation
21.3″ Color Display
|
2MP
|
DICOM 3.14 Calibrated
|
Clinical Display
Engineered for Reliable Clinical Review
The CL2MPS combines calibrated color performance, flexible connectivity, and dependable service in one clinical display.
It is purpose-built for high-volume PACS, modality, and EMR review environments.

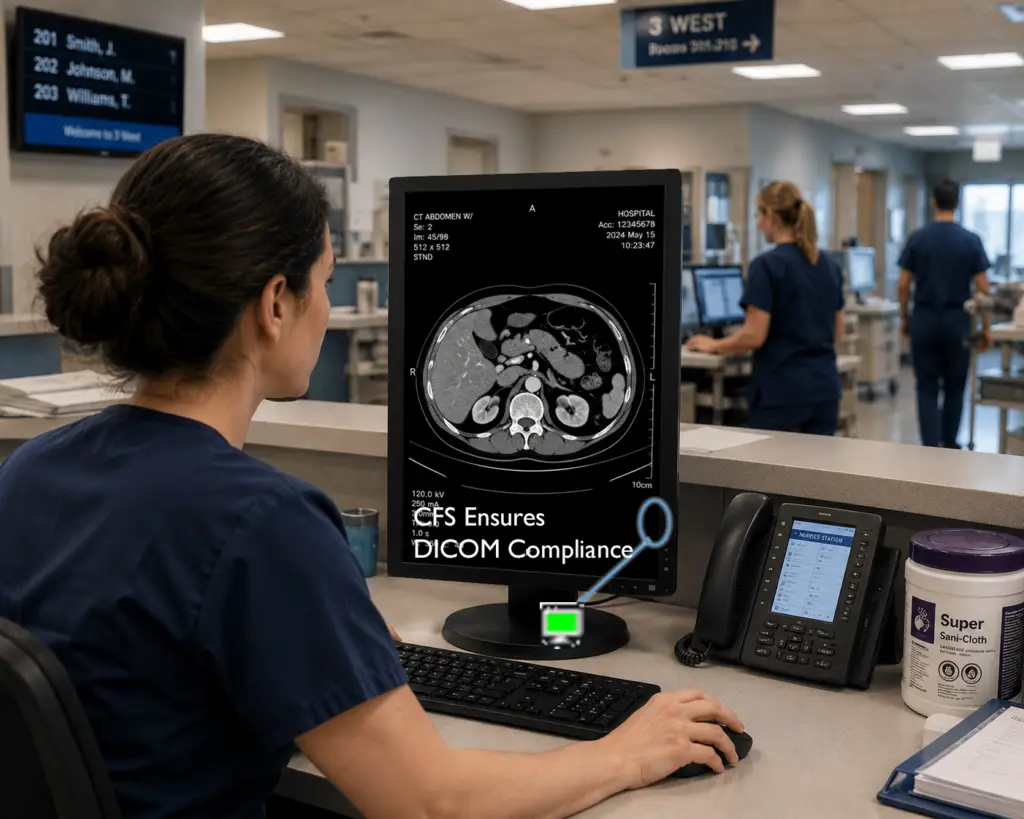

Automated DICOM Calibration with CFS
Calibration, Compliance & Enterprise Management
An embedded front sensor calibrates the CL2MPS to the DICOM 3.14 grayscale standard automatically. CFS Calibration Suite® tracks conformance, logs results, and generates compliance reports. A rear sensor manages backlight brightness to hold luminance steady across the display’s service life.
- Embedded Front Sensor for DICOM 3.14 Calibration
- CFS Conformance Tracking and Reporting
- Rear Sensor for Backlight Brightness Control
- CFS Developed and Supported in the USA
- Centralized Enterprise QA Management
- Eliminates Dependence on External QA Tools
- Productivity Toolkit Included
- Virtuoso Enterprise Management by DBI Available

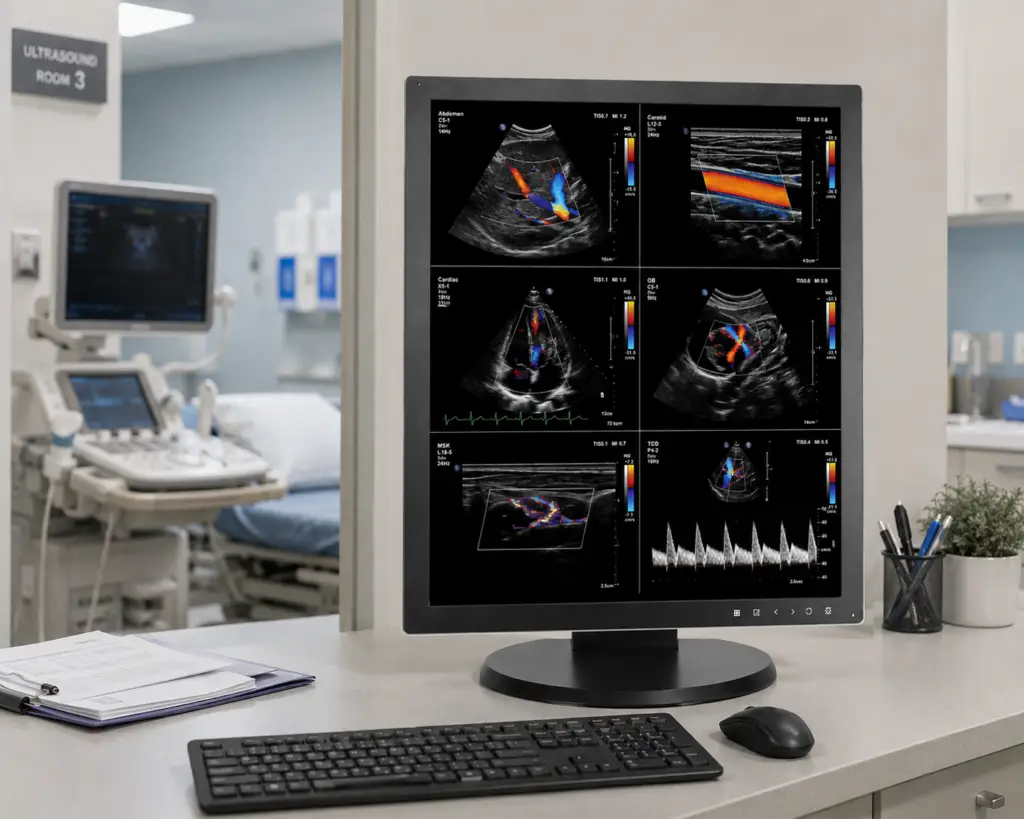

Color and Grayscale Performance for Multi-Modality Review
One Clinical Display Across the Imaging Enterprise
The CL2MPS renders both color and grayscale studies for broad clinical use. A 1800:1 contrast ratio and 500 cd/m² panel brightness help separate fine detail across modalities. It supports CT, MR, ultrasound, nuclear medicine, PACS review, and worklist display.
- Color and Grayscale Image Support
- 1800:1 Contrast Ratio
- 500 cd/m² Panel Brightness
- 178° Horizontal and Vertical Viewing Angle
- 16ms Typical Response Time
- Suited to CT, MR, Ultrasound, and Nuclear Medicine

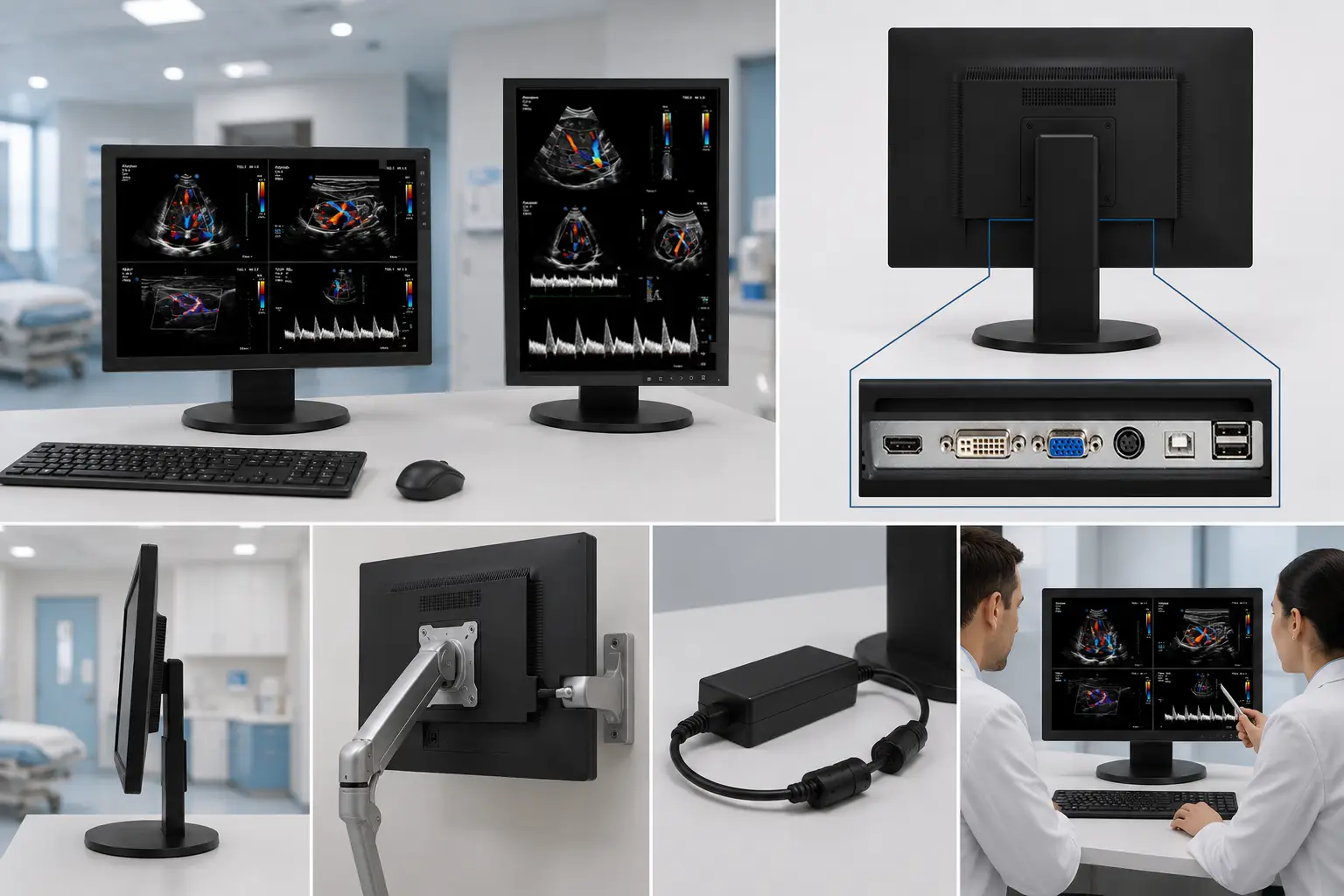

Flexible Connectivity for Existing Systems
Drop-In Integration for PACS Review Workstations
The CL2MPS connects through DVI-D, DisplayPort, and legacy VGA inputs. This range supports both new and existing PACS workstations without added adapters. Portrait and landscape orientation plus VESA mounting let teams configure the display to the room.
- DVI-D, DisplayPort, and VGA D-Sub Inputs
- Portrait and Landscape Orientation
- VESA Standard Mounting Configuration
- Slim, Space-Saving Form Factor
- External Power Supply for Added Reliability
- Wide Viewing Angle for Shared Review
USA-Based Service, Support, and Warranty
Long-Term Confidence for Clinical Operations
The CL2MPS is backed by a 3-year warranty with optional extended coverage. Service and support are available 24/7 from DBI’s Colorado facility. Thousands of PACS administrators, radiologists, and healthcare organizations rely on DBI for responsive, USA-based support.
- 3-Year Warranty, Extended Coverage Optional
- Direct Access to USA-Based Support Teams
- Tested and Serviced in Colorado, USA
- Proven Across Enterprise Healthcare Environments
CL2MPS+ Specifications
Key technical details for evaluating performance, compatibility, and long-term deployment requirements.
Resolution
1200 x 1600 Portrait; 1600 x 1200 Landscape (2MP)
Screen Size and Active Area
21.3″, 4:3 Aspect Ratio; 17.0″x12.75″ Active Display Area
Screen Type
LED Backlit LCD
Brightness
500 cd/m2
Contrast
1800:1
Viewing Angle
178 Degrees Typical
Pixel Pitch
0.270 x 0.270 mm
Response Time
16ms Typical
Video Inputs
DVI-D 24-Pin, DisplayPort 20-Pin, VGA D-Sub 15-Pin
Dimensions W x H x D (Inches)
14.53 x 19.96-24.69 x 9.25″ w/Stand;
Weight (lbs)
20.28 lbs w/Stand
Power Supply
External for added reliability. AC Input to power brick: 100-240V
Power Consumption (on/savings)
50W; Less than 2W in Power Save
Certifications
UL/CUL (E363595-A2), UL60601-1, EN60601-1-2:2007, EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2-13, FCC Class B, IEC 60601-1:2005; EN 60601-1:2006
Recommended Modalities
CT, MR, NM, Ultrasound, PET, General PACS Review
Other Features
Front Sensor for True Auto-Calibration, CFS Client/WebManager Calibration Software included, Rear Sensor for Back light brightness control, Digital Ambient Light Compensation, Complete Screen Luminance Uniformity Control, Built in LED Task and Wall lighting, 14 Bit Processing for Precise Image Rendering, VESA Standard Mounting configuration, Other Mounting options available.
2MP Clinical Display FAQs
What is the 21″ 2MP color clinical display used for?
The CL2MPS is built for clinical review and PACS workflows. It suits modality imaging, worklist display, and image-enabled EMR review across CT, MR, ultrasound, and nuclear medicine. It is positioned as a clinical review display rather than a primary diagnostic mammography display.
How does the automated DICOM calibration work?
An embedded front sensor measures the screen and calibrates it to the DICOM 3.14 grayscale standard. CFS Calibration Suite® then tracks conformance and produces compliance reports. A rear sensor adjusts the backlight to hold brightness steady over time.
Why does it matter if a clinical display is calibrated?
Calibration keeps grayscale and brightness consistent, so the same study looks the same on every display and over time. Without it, a monitor drifts as its backlight ages, which can dull subtle detail or shift how an image appears. DICOM 3.14 calibration aligns the display to a recognized standard, supporting reliable interpretation and quality-assurance compliance.
What is the difference between a clinical display and a diagnostic display?
Diagnostic displays are intended for primary image interpretation and must meet stricter performance requirements for luminance, calibration, and image consistency. Clinical displays are generally used for image review, EMR access, or non-diagnostic viewing.
Is the CL2MPS compatible with my PACS system?
Yes. It connects through DVI-D, DisplayPort, and VGA inputs, which fit both current and older PACS workstations. It supports portrait and landscape orientation and VESA mounting for flexible setup.
Can the CL2MPS display both color and grayscale studies?
Yes. It renders color and grayscale images, so a single display covers a broad mix of clinical studies. This makes it a versatile choice across the imaging enterprise.
Is this display suitable for enterprise or multi-facility deployments?
Yes. CFS Calibration Suite® supports centralized, remote calibration management and reporting across many displays. This helps IT and PACS teams maintain consistent image quality enterprise-wide.
What should IT and PACS teams evaluate besides resolution?
They should look at calibrated luminance stability, contrast ratio, connectivity, and calibration management tools. Service response time and warranty terms also affect long-term total cost of ownership.
